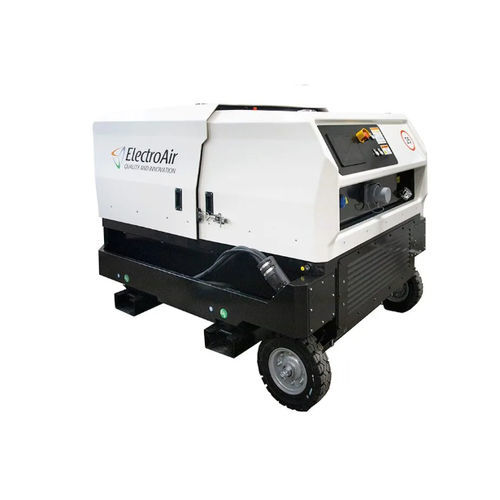

Hybrid ground power unit APA-100

dieselmobilefor aircraft

Overview
The APA-100 is a compact mobile diesel combined ground power unit designed for apron and maintenance operations. It integrates a Deutz Stage 5 (TCD 3.6) diesel engine and provides both 400 Hz AC and 28.5 VDC aircraft power from a single mobile unit, reducing required apron equipment and increasing servicing flexibility.

Main specifications (APA-100)

• Output configuration: 1 x 400 Hz AC output + 1 x 28.5 VDC output
• Rated AC power: 90 kVA (400 Hz)
• Rated DC power: 800 A (28.5 VDC)
• Diesel engine: Deutz Stage 5, TCD 3.6 (Stage V / Tier 4)
• Fuel tank capacity: 8 hours operation at 100% load
• Display: 10.1" anti-glare sunlight-readable touchscreen
• Noise level: <75 dBA @ 7 m
• Simultaneous operation of output channels: Yes

Key features

• Most compact unit in the series with Stage V / Tier 4 diesel engine
• Reduced CO2 and regulated emissions
• Optional hybrid utility plug-in functionality for shore power integration
• Combined AC and DC aircraft power in one unit for mixed-fleet operations
• Operator-friendly control and monitoring via touchscreen
• Strong overload capability for demanding maintenance tasks

Applications

• Airport ground handling and apron operations
• Line and base maintenance
• Support for mixed-fleet aircraft types
• Remote stands and decentralized operations
• Military and civil aviation requiring simultaneous AC and DC power

Other diesel GPU models (examples)

• APA-10 – compact diesel GPU (28.5 VDC)
• APA-65 (EAR-600) – mobile diesel ground power unit
• APA-110 – high-capacity diesel GPU
• APA-165 – high-power diesel GPU
• APA GPU – airdrome configuration

Technical specifications

• Model: APA-100
• AC output: 90 kVA, 400 Hz
• DC output: 800 A, 28.5 VDC
• Output configuration: 1 x 400 Hz AC + 1 x 28.5 VDC
• Diesel engine: Deutz Stage 5, TCD 3.6 (Stage V / Tier 4)
• Fuel autonomy: 8 hours at 100% load
• Control/display: 10.1" anti-glare sunlight-readable touchscreen
• Acoustic level: <75 dBA measured at 7 m
• Simultaneous operation of AC and DC channels: Yes
• Optional features: hybrid plug-in utility power capability
• Design: compact, lightweight mobile unit for harsh outdoor conditions and mixed-fleet support
