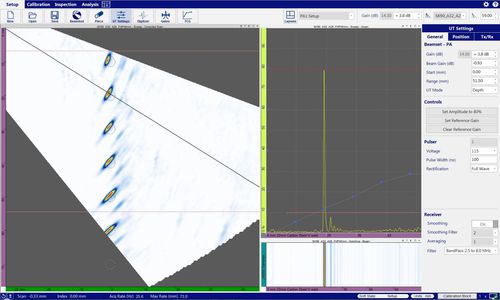

Analysis software WeldSight

data acquisitioninspectionfor aeronautics

WeldSight software’s comprehensive acquisition and analysis tools enable you to engineer compliant and repeatable advanced phased array (PA), ultrasonic testing (UT), and time-of-flight diffraction (TOFD) weld inspections. Pushing flaw characterization and sizing further, WeldSight software’s tools enable inspectors to conduct thorough analyses that comply with strict validation requirements of international or internal standards. Efficient Workflow for Weld or Corrosion Inspection WeldSight software features a logical, streamlined workflow: Beam set creation UT configuration Calibration Data collection Analysis Reporting FOCUS PX Phased Array and Conventional Ultrasonic Data Acquisition Instrument The FOCUS PX is a powerful and scalable acquisition unit designed for harsh environments. Use the advanced scan plan, validation, and analysis tools of WeldSight software and up to four FOCUS PX units in parallel to enable advanced multiprobe configurations, increasing your inspection efficiency exponentially. OmniScan X3 Phased Array and UT Flaw Detector With the WeldSight Remote Connect app, data files acquired on the OmniScan X3 unit are transferred instantly to the WeldSight computer or laptop. The battery-operated unit enables greater setup configuration flexibility and increased portability. The optional protection door helps keep out dust and water splashes while the OmniScan X3 flaw detector is controlled via WeldSight software. Data files (.opd) generated by OmniScan MX (MXU 2.0 and later), MX2, and SX flaw detectors can be loaded and reviewed using WeldSight software.
