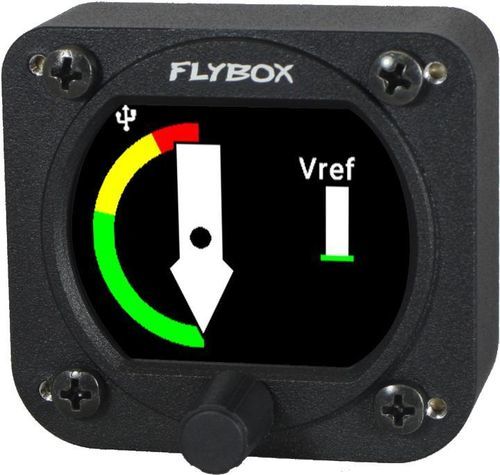

Speed measuring instrument Omnia57 LIFT

for the aerospace industrycompactautomatic

Overview
Omnia LIFT is a compact instrument integrating calibrated inertial and airspeed sensors to detect an approaching stall without requiring an external AOA probe. It provides pre-stall warnings and delivers complementary speed information useful during landing and glide phases.

Main features

• Included gauges: Stall indicator
• Included gauges: Vref indicator
• Included gauges: VeMax indicator

Interfaces

• Knob with pushbutton
• 2 CAN bus
• Light sensor input
• USB 2.0 port
• Static and pitot ports
• Can be connected in cluster with other Omnia instruments (up to 16 instruments)

Manufacturing

• Rugged case milled from solid aluminium
• Powder-painted
• 100% manufactured and tested with automatic processes

Functions

• Customizable speed settings
• Vref and VeMax settable
• Acoustic alarm before stall
• Manual or automatic backlight dimmer
• Easy software updating through the USB port

What is included

• Omnia LIFT instrument
• Quick Reference Guide
• M4x10mm screws
• Alarm Buzzer
• Packing list

Optional accessories

• Cod. 105800 — Wired Ambient Light sensor
• Cod. 105810 — CAN termination 120 ohm
• Cod. 105820 — CAN cable 25 cm
• Cod. 105830 — CAN cable 50 cm
• Cod. 105840 — CAN cable 100 cm
• Cod. 601020 — OAT probe (Outside air temp.) with 2.5 m cable
• Cod. 604010 — USB extender Cable 0.5 m
• Cod. 603000 — Professional crimping tool
• Harness (Omnia harness available)
• Cod. 105601 — Connector Kit

Technical specifications

• Display: 2.4" color graphic LCD, 320x240 pixels with 1000 nits backlight
• Standard mounting: 2-1/4” (57 mm) and 3-1/8” (80 mm)
• Case: Powder painted aluminium
• Dimensions: 68 x 62 x 35 mm (57), 85 x 85 x 40 mm (80)
• Weight: 140 g (57), 230 g (80)
• Supply voltage: 10 ~ 30 V
• Supply current: 60 mA (57), 135 mA (80)
• ASI input range: 0–500 km/h
• Open-collector alarm output (max 300 mA, active low). Can be used to send a tone to the intercom using an optional Flybox device
• Operating temperature range: -20 ~ +70 °C
• Humidity: 90% max (without condensation)
• Communication: 2 CAN bus
• USB: USB 2.0 port for updates
