Pressure gauge Omnia

temperaturedigitalelectronic

Overview

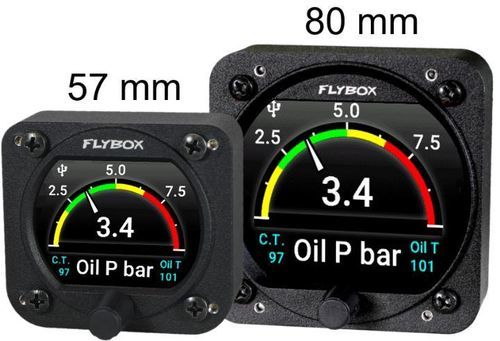

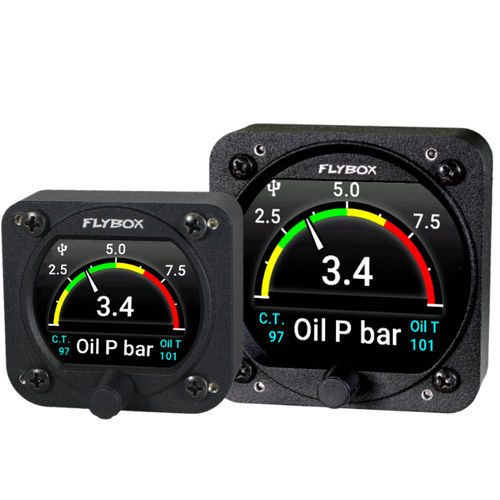

Omnia Oil P-T-CT integrates three independent gauges (oil pressure, oil temperature and coolant temperature) that can be enabled individually to match installation requirements. Designed for compatibility with a wide range of light-engine installations, the instrument features a high-visibility color display, a 32-bit microcontroller and modern solid-state sensors for long-term reliability. Up to 16 Omnia instruments can be networked in a cluster to simplify data exchange.

Main features

• Included gauges: 1 Oil Pressure
• Included gauges: 1 Oil Temperature
• Included gauges: 1 Coolant Temperature

Interfaces

• Rotary knob with pushbutton
• 2x CAN bus interfaces
• Ambient light sensor input
• USB 2.0 port (for updates and configuration)
• Cluster connection with other Omnia instruments

Manufacturing

• Case milled from solid aluminium
• Powder-coated finish
• 100% manufactured and tested with automated processes

Functions

• On-screen visual alarm
• Open-collector (transistor) alarm output
• Manual or automatic backlight dimmer
• Manual or automatic gauge selection
• Firmware updates via USB port

Notes

• Oil Pressure, Oil Temperature and Coolant Temperature probes are not included.
• All probes factory-installed on Rotax engines are compatible.
• Refer to the instrument manual for the list of compatible probes and wiring diagrams.

What is included

• Omnia Oil P-T-CT instrument
• 4 × M4×10 mm mounting screws
• Quick Reference Guide
• Packing list

Optional accessories

• 105800 Wired Ambient Light sensor
• 105810 CAN termination 120 ohm
• 105820 CAN cable 25 cm
• 105830 CAN cable 50 cm
• 105840 CAN cable 100 cm
• 105899 Audio Tone adapter
• 602000 Oil Pressure probe 4-20 mA (1/8" NPT model) Rotax compatible
• 105898 Alarm Buzzer for Omnia series
• 604010 USB extender cable 0.5 m
• 603000 Professional crimping tool
• Harness
• 105602 Connector Kit

Technical specifications

• 2.4" color graphic LCD, 320 × 240 pixels, 1000 nits backlight

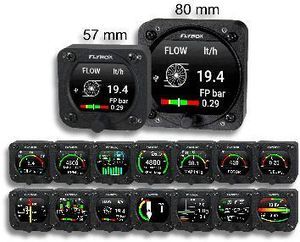

• Standard mounting: 2-1/4" (57 mm) and 3-1/8" (80 mm)
• Powder-painted aluminium case
• Dimensions: 68 × 62 × 35 mm (57), 85 × 85 × 40 mm (80)
• Weight: 140 g (57), 230 g (80)
• Supply voltage: 10 ~ 30 V
• Supply current: 60 mA (57), 135 mA (80)
• Altitude range: -1000' to +25,000'
• Open-collector alarm output (max 300 mA, active low)
• Operating temperature range: -20 ~ +70 °C
• Humidity: 90% max (without condensation)
• Communication: 2x CAN bus
• USB port: USB 2.0
