Temperature measuring instrument Omnia57

for the aerospace industrywith screenautomatic

Overview

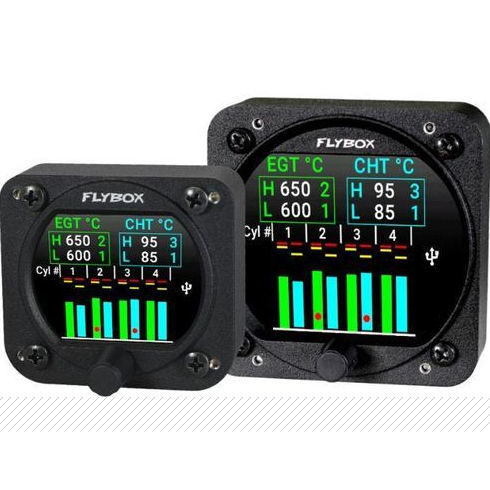

Omnia CHT-EGT measures exhaust gas temperature (EGT) for each cylinder (up to 4) and cylinder head temperature (CHT) for up to 4 heads. It integrates up to eight independent gauges that can be enabled individually to match your engine configuration. The instrument is fully configurable to suit the majority of piston engines used in light aircraft. All Omnia family instruments feature a high-visibility 2.4" color display, a powerful 32-bit microcontroller and modern solid-state components to ensure long-term reliability and accuracy. Up to 16 Omnia instruments can be connected in a cluster for data exchange between units.

Main features

• Available configurations: 4 CHT + 4 EGT (4+4) or 2 CHT + 2 EGT (2+2)
• On-screen visual alarm with configurable thresholds
• Transistor / open-collector alarm output
• Manual or automatic backlight dimming
• Manual or automatic gauge selection
• Firmware updates via USB 2.0 port

Interfaces

• Rotary knob with pushbutton
• 2 × CAN bus ports
• Ambient light sensor input
• USB 2.0 port for software updates
• Cluster connection compatible with other Omnia instruments

Manufacturing

• Rugged case milled from solid aluminium
• Powder-painted finish
• 100% manufactured and tested using automated processes

Functions

• On-screen visual alarm when thresholds are exceeded
• Transistor alarm output suitable for external alert systems
• Backlight dimmer: manual or automatic
• Manual or automatic gauge selection
• Software updates via USB

Notes

• Probes (thermocouples) are not included.
• For EGT inputs use any K-type thermocouple; probe code 601008 is shown as an example.
• For CHT inputs use any J-type thermocouple available on the market.

What is included

• Omnia CHT-EGT instrument
• Quick Reference Guide
• M4x10 mm mounting screws
• Packing list

Optional accessories

• 601008 — EGT probe with 2.5 m cable, compensated connectors and coupling fitting to weld
• 105800 — Wired Ambient Light sensor
• 105810 — CAN termination 120 ohm
• 105820 — CAN cable 25 cm
• 105830 — CAN cable 50 cm
• 105840 — CAN cable 100 cm
• 105899 — Audio Tone adapter
• 105898 — Alarm Buzzer for Omnia series
• 604010 — USB extender Cable 0.5 m
• 603000 — Professional crimping tool
• 105602 — Connector Kit

Technical specifications

• Display: 2.4" color graphic LCD 320×240 pixels with 1000 nits backlight
• Standard mounting: 2-1/4" (57 mm) and 3-1/8" (80 mm)
• Case: powder-painted aluminium milled from solid
• Dimensions: 68 × 62 × 35 mm (57), 85 × 85 × 40 mm (80)
• Weight: 140 g (57), 230 g (80)
• Supply voltage: 10–30 V
• Supply current: 60 mA (57), 135 mA (80)
• Open-collector alarm output (max 300 mA, active low) — can be used to drive an intercom tone with optional adapter
• Inputs: 4 or 2 CHT inputs (model dependent); 4 or 2 EGT inputs (model dependent)
• Operating temperature: −20 to +70 °C
• Humidity: up to 90% max (without condensation)
• Communication: 2 × CAN bus
• USB: USB 2.0 for software updates
