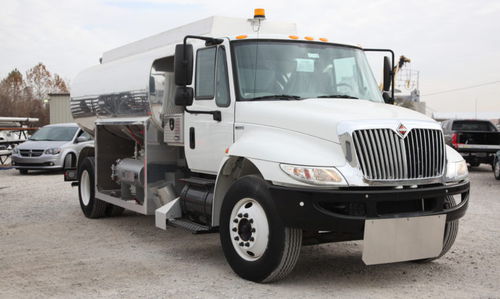

Self-propelled refueller HV607 SBA
for airport

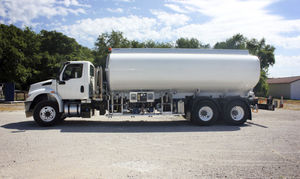

self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
self-propelled refueller
Add to favorites
Compare this product


Characteristics

Type
self-propelled
Domain
for airport
Tank capacity

3,000 gal

Fuel flow

300 us gal/min
(1,135.62354 l/min)

Description

compartment, overturn protection, 20” manhole with 10” fill opening with emergency pressure/vacuum vents. STANDARD DIMENSIONS: 26’L x 96” W x 116” H PUMP: Centrifugal type, PTO driven, hot shift. 300 GPM / 1,150 LPM. FILTER/SEPARATOR: Latest edition horizontal filter/separator – 300 GPM rated with differential pressure gauge, air eliminator, water defense and drain valve. F/S meets API 1581 specifications and qualification procedures for solids and water removal. FLOW METER: One meter, 300 GPM rated and panel mounted TCS 3000 included as standard equipment (options available). VENTURI: Sized to compensate for pressure loss. DEADMAN AND PRESSURE CONTROLS: Electrically operated inline deadman/pressure control valve provides primary pressure control. Secondary pressure control is regulated by a mechanical hose-end control valve. HOSE REELS: Two reels; one single wrap sized for 2½” x 50’ hose, and one sized for 1½” x 50’ hose, non-ferrous internals, explosion-proof electric rewind motors and switches, auxiliary manual rewind. An isolation shut-off valve is installed immediately upstream of the reel. HOSES: One 2” x 50’ and one 1¼” x 50’ aviation fueling hose with N/R male couplings, certified to API 1529. OVERWING NOZZLE: Jet overwing nozzle with swivel and 100 mesh strainer. UNDERWING NOZZLE: One international standard 3-lug underwing nozzle with quick disconnect and swivel. BOTTOM LOADING: Includes a jet level sensor control system for automatic, high-level shut-off with precheck. The bottom loading adapter, capable of accepting a standard underwing nozzle.
