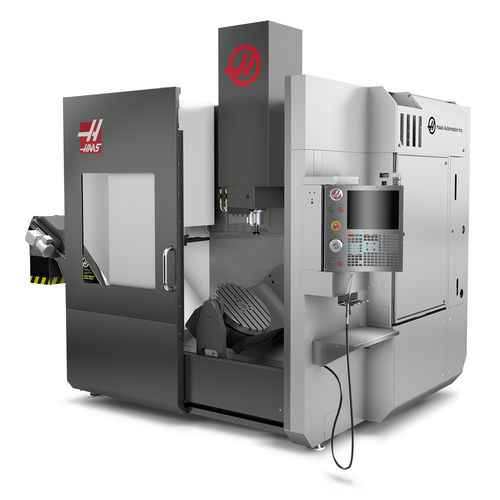

5-axis machining center / vertical / universal / for aeronautics
UMC-750SS

{{requestButtons}}

Characteristics

  • Number of axes:

    5-axis

  • Spindle orientation:

    vertical, universal

  • Other characteristics:

    for aeronautics, CNC, rotating table

  • X travel:

    762 mm (30 in)

  • Y travel:

    508 mm (20 in)

  • Z travel:

    508 mm (20 in)

  • Rotational speed:

    15,000 rpm (94,248 rad.min-1)

Description

5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The Haas UMC Series universal machining centers are cost-effective solutions for 3+2 machining and simultaneous 5-axis machining. The UMC-750SS has an integrated high-speed, dual-axis trunnion table with a 500 mm diameter platter that features standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides +110 and -35 degrees of tilt and 360 degrees of rotation to provide excellent tool clearance and large part capacity.

5-axis simultaneous machining
Powerful inline direct-drive spindle
High-speed trunnion table
Includes Wireless Intuitive Probing System
Made in the USA

STANDARD FEATURES
SPINDLES
15,000-rpm Spindle
TOOL CHANGERS
40+1 Side-Mount
PROBING
Wireless Intuitive Probing System
THE HAAS CONTROL
Media Display M-Code; M130
HaasConnect: Remote monitoring
Early Power-Failure Detection Module
Ethernet Interface
WiFi Connection for the Haas Control
Safe Run
Remote Jog Handle with Touchscreen Display
Rigid Tapping
Dynamic Work Offsets and Tool Center Point Control
High-Speed Machining
Standard Program Memory, 1 GB
Second Home Position
PRODUCT OPTIONS
Top Cover with Mist Extraction Provision
WARRANTY
1-Year Standard Warranty
