IMU inertial system INS-DL
AHRSINSMEMS

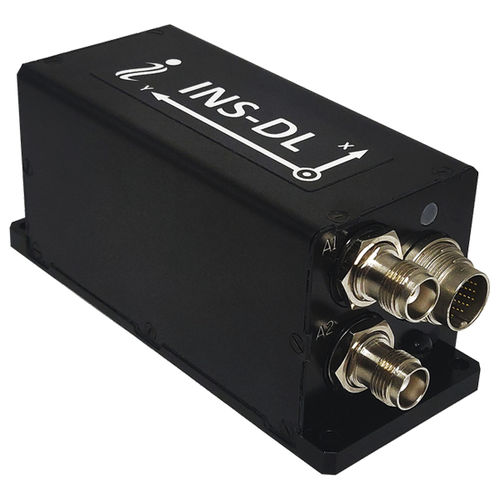

IMU inertial system - INS-DL - Inertial Labs, Inc. - AHRS / INS / MEMS
IMU inertial system - INS-DL - Inertial Labs, Inc. - AHRS / INS / MEMS
IMU inertial system - INS-DL - Inertial Labs, Inc. - AHRS / INS / MEMS - image - 2
IMU inertial system - INS-DL - Inertial Labs, Inc. - AHRS / INS / MEMS - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
IMU, AHRS, INS, MEMS, motion control
Options
GNSS, with integrated GPS, for UAV, miniature, navigation, for avionics instruments, with integrated dual-antenna GPS, 3-axis, lightweight, ITAR-free
Temperature range

Max.: 85 °C
(185 °F)

Min.: -50 °C
(-58 °F)

Description

INS-DL Dual Antenna Low Cost Dual GNSS Antenna Inertial Navigation System - - - - - - - - - - Heading Accuracy: 0.2° (2m baseline) / 0.4° (1m baseline). Position Accuracy: 1cm (RTK), 60cm (SBAS). Pitch & Roll Accuracy: 0.04° dynamic, 0.08° static. GNSS Constellations: BDS, GAL, GLO, GPS, QZSS. Corrections: PPK, RTK, SBAS. Type of IMU: MEMS, Industrial-grade. Magnetometer: External Magnetic Compass (optional). Other Features: Affordable price, Industrial Grade IMU. Size (mm): 120.5 x 53.2 x 49.3 Applications: Antenna Pointing; Low Cost Position and Velocity; Industrial Navigation. - - - - - - - - - -

VIDEO

Other Inertial Labs, Inc. products

INS – GPS-Aided Inertial Navigation Systems

See all Inertial Labs, Inc. products
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
