Landing light IWT.852.HEL.01

for heliport useLEDsteady

Product overview

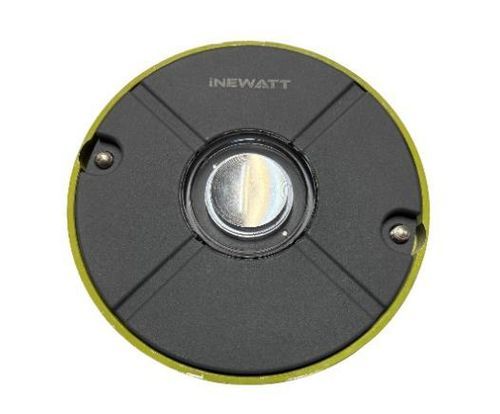

Inset Heliport FATO Light is a recessed light designed for heliport Final Approach and Take-Off areas (FATO). The unit features a minimal 6.35 mm protrusion above ground and an integrated pressure valve for water-tightness testing. It is ICAO certified and suitable for heliports on land or water requiring compliance with international standards.

Article details

• Article number: IWT.852.HEL.01 (White)
• Description: Inset FATO light for heliport FATO/TLOF
• Power consumption: 14 VA
• Light intensity: White – 100 cd

Basic facts

• Light source: LED
• Operating temperature: -40 °C to 55 °C
• Protection degree: IP67
• Light mode: Steady light
• Power supply: 110/230 VAC – 24 VDC – 6.6 A SC
• Dimensions: 203.2 x 203.2 x 90 mm
• Weight: 2.40 kg

Technical specifications

• Intended use: Recessed light for helicopter take-off and landing area (FATO)
• Protrusion above ground: 6.35 mm
• Pressure valve: Equipped for water-tightness testing
• Certification: ICAO certified (meets international standards and recommendations for heliports)
• Article number: IWT.852.HEL.01 (White)
• Power consumption: 14 VA
• Light intensity: White – 100 cd
• Light source: LED
• Operating temperature: -40 °C to 55 °C
• Protection degree: IP67
• Light mode: Steady light
• Power supply: 110/230 VAC – 24 VDC – 6.6 A SC
• Dimensions: 203.2 x 203.2 x 90 mm
• Weight: 2.40 kg
