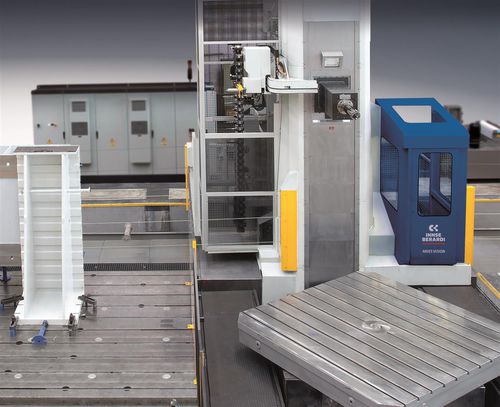

5-axis machining center Aries Vision
3-axishorizontaluniversal

5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis, 3-axis
Spindle orientation
horizontal, universal
Other characteristics
for aeronautics
Y travel

Min.: 2,000 mm (79 in)

Max.: 4,000 mm (157 in)

Rotational speed

Min.: 4,000 rpm (25,133 rad.min-1)

Max.: 8,000 rpm (50,265 rad.min-1)

3,000 rpm (18,850 rad.min-1)

Description

Aries Vision is recognized for its versatility, which permits its use in several application fields: general engineering, aerospace parts, oil & gas, energy, etc. It is possible to configure the machine with head and boring spindle versions or head with power driving shaft and built-in C axis combined with additional attachment heads. The flexibility of the center can offer a wide range of solutions, from the standalone machine to a full FMS system. A complete range of advanced milling attachment heads provides the optimum solution for each user’s application requirements. The use of standard off-the-shelf components increases the reliability of the machines while reducing cost and delivery times. Technical specifications: Boring spindle diameter - mm 130 up to 160 Spindle power (S1) - kW 40 up to 60 Spindle nominal torque (S1) - Nm 1,200 up to 2.500 Axis - 3+2 or 5-Axis W-axis - optionally available Attachment heads The Aries Series milling and boring machines are equipped with automatic head attachment changing capabilities for the installation and use of different heads. The machines also have automatic clamping and tool clamping capabilities. In addition to the production of standard accessories, Innse-Berardi is able to develop special accessories to meet any production requirement: Mod. TUM - Universal head with two continuous working axes Mod. TUAR - Head with two continuous positioning axes Mod. TWI - Universal two indexed axes head Mod. SLIM - Narrow right angle head Mod. TSAR Right angle head Mod. UT Facing head Mod. FXX Extension head Mod. Speed multiplier
