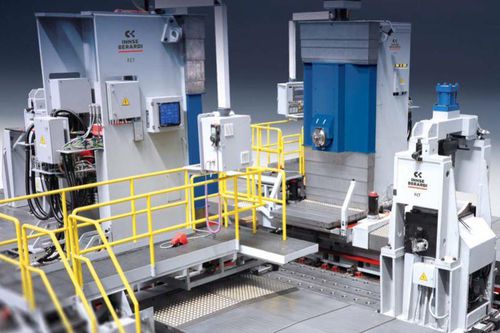

5-axis machining center FCT
horizontalfor the aerospace industryfor aeronautics

5-axis machining center - FCT  - INNSE-BERARDI SPA - horizontal / for the aerospace industry / for aeronautics
5-axis machining center - FCT  - INNSE-BERARDI SPA - horizontal / for the aerospace industry / for aeronautics
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Applications
for the aerospace industry, for aeronautics
Rotational speed

4,000 rpm
(25,133 rad.min-1)

Description

The hydrostatic guideways on all axes provide superior damping characteristics during all cutting conditions, from heavy duty milling of blade feet, starting from solid disks to the use of solid carbide milling cutters. The power-torque-speed characteristics of the main drive shaft permits to employ both high speed rotation and large diameter bell cutters (or disk type) that required high torque. The traditional configuration is designed with two opposite units working together. This solution reduces the machining time of the turbine rotor drastically and leads to a quick return on investment. Technical specifications: Max. spindle torque - Nm up to 7,500 Max. Workpiece weight - tons up to 350 Max. workpiece length - mm up to 18,000

Catalogs

No catalogs are available for this product.

See all of INNSE-BERARDI SPA‘s catalogs
