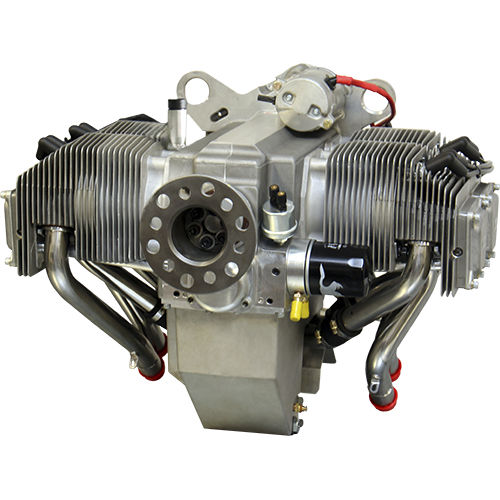

50 - 100hp piston engine Jabiru 2200
50 - 100kgfor light aircraft4-stroke

50 - 100hp piston engine
50 - 100hp piston engine
50 - 100hp piston engine
Add to favorites
Compare this product


Characteristics

Engine power
50 - 100hp
Dry weight
50 - 100kg
Applications
for light aircraft
Cycle
4-stroke
Number of cylinders
4-cylinder

Description

The Jabiru 2200cc Aircraft Engine is a 4-cylinder 4-stroke horizontally opposed air cooled engine. 80hp. 4 Stroke 4 Cylinder Horizontally Opposed 1 Central Camshaft Aluminium Alloy Crankcase Over Head Valves (OHV) Hydraulic Valve Lifters with Automatic Adjustment Ram Air Cooled Wet Sump Lubrication Direct Propeller Drive Dual Transistorized Magneto Ignition Integrated AC Generator Electric Starter Mechanical Fuel Pump Naturally Aspirated Pressure Compensating Carburettor Displacement Bore Stroke Compression Ratio Direction of Rotation of Prop Shaft Ramp Weight Power Rating Fuel Oil Capacity Spark Plugs 2200 cc (134 cu.in.) 97.5 mm 74 mm 8:1 clockwise pilot's view tractor applications 62.3kg (137 lbs) including exhaust, muffler, carburettor, starter motor, alternator, ignition system, regulator, engine mount rubbers, starter solenoid muffler springs 60 kW (80 hp) @ 3300 RPM AvGas 100/130 MoGas 95 octane & above 2.3I (2.2 quarts) NGK D9EA automotive 6 Bearing Crankshaft
