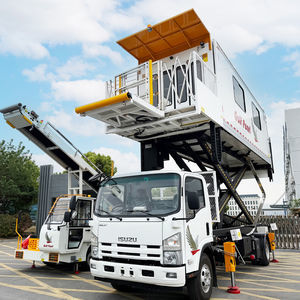

Self-propelled ambulift JSTY5100JCRE

for people with reduced mobilityfor airport

Overview
The JSTY5100JCRE electric airport ambulift is a vehicle-mounted passenger/boarding lift built on a Qingling second-class electric vehicle chassis. It features an adjustable working platform (including telescopic and rear-lift sections), high-capacity lithium iron phosphate energy storage and is engineered for compatibility with a wide range of commercial aircraft (excluding Airbus A380). Intended for ground handling and assisted boarding operations at airports.

Applicable aircraft models

• A300
• A310
• A318
• A319
• A320
• A330
• A340
• B707
• B727
• B737
• B747
• B757
• B767
• B777
• DC8
• IL-18
• IL-62
• MD11
• MD80
• Other models (excluding Airbus A380)

Key specifications

• Model: JSTY5100JCRE
• Chassis: QL1101BEVEMMAY
• Overall dimensions (L×W×H): 9,700 × 2,400 × 3,770 mm
• Platform working height: 2,200–6,000 mm (operational range: min 2,250 mm, max 6,000 mm)
• Maximum vehicle load: 3,500 kg
• Fixed platform rated load: 1,500 kg
• Telescopic platform rated load: 800 kg
• Rear platform rated load: 500 kg
• Inner body dimensions (L×W×H): 6,570 × 2,200 × 2,100 mm
• Fixed platform dimensions (L×W): 2,300 × 2,000 mm
• Expansion distance (extension platform): 0–600 mm
• Rear lift stroke: 0–1,500 mm
• Maximum road speed: 85 km/h
• Service/curb weight: 10,900 kg
• Wheelbase: 5,200 mm
• Minimum ground clearance: 180 mm
• Battery type: Lithium iron phosphate (LiFePO4)
• Total stored energy: 162.28 kWh
• Approximate driving range: 340 km
• One-charge time: ~1.5 h
• Charging mode: GB DC charging interface (9-core)

Components & powertrain

• Drive motor: TZ370XS-LKM0851
• Drive motor controller: KTZ54X35S-LKC0851
• Chassis vehicle controller: VCU06
• Energy storage assembly / unit: L173TB2 / CB220
• Gearbox: J5S75
• Hydraulic pump: CBN-F563-BFHL
• Selected cylinders and actuators: D160/145-1045, D40/30-600, D40/30-515, D40/30-1450, D90/50-345
• Tires: 245/70R17.5 18PR
• Emergency pumps: electric 800601632 / manual PMO 50-s

Operational notes

• Designed for airport ground-handling and assisted boarding; verify compatibility with specific aircraft door heights and ground markings prior to deployment.
• Battery: LiFePO4 pack with high energy (162.28 kWh) — follow manufacturer guidelines for charging and storage; one-charge nominal time ≈1.5 h using GB DC interface.
• Perform regular inspections of hydraulic systems, platform actuators and safety interlocks as part of airport maintenance routines.
• Provide operator training on platform extension/retraction sequences, safe load distribution and emergency pump procedures.
