Self-propelled ambulift WTJ5100JCR

for people with reduced mobilityfor airport

Product overview

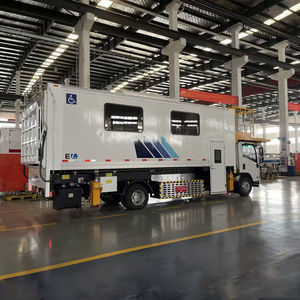

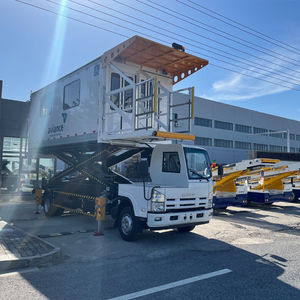

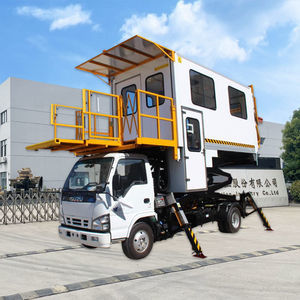

The WTJ5100JCR diesel airport ambulift is a vehicle modified on a Qingling second-class automobile chassis to provide assisted boarding and disembarkation for passengers with reduced mobility. The design integrates a fixed and a mobile platform, height adjustment and lateral expansion to align with aircraft doors, and components selected for accessibility and airport operation compatibility.

Applicable aircraft

• Airbus: A380, A300, A310, A318, A319, A320, A330, A340
• Boeing: B707, B727, B737, B747, B757, B767, B777
• Other types: DC8, IL-18, IL-62, MD11, MD80

Key features

• Modified on Qingling second-class automobile chassis (QL1110ANPAY)
• Platform working height 2500–5800 mm; platform expansion adjustment 0–600 mm
• Body load rating 2500 kg; fixed platform 1200 kg; mobile platform 600 kg
• Low center of gravity for stable positioning at aircraft doors
• Engine 4HK1-TCG61 with Allison1000 transmission; emissions meet GB 17691-2018 Stage 6b and GB 3847-2018

Technical specifications

• Model: WTJ5100JCR
• Vehicle type: Diesel airport ambulift
• Engine type: 4HK1-TCG61
• Platform working height (mm): 2500–5800
• Body load rating (kg): 2500
• Fixed platform load rating (kg): 1200
• Mobile platform load rating (kg): 600
• Platform expansion adjustment range (mm): 0–600
• Fixed platform dimensions (L × W) (mm): 1835 × 2290
• Mobile platform dimensions (L × W) (mm): 910 × 2170
• Maintenance weight (kg): 10500
• Overall dimensions (L × W × H) (mm): 8930 × 2460 × 3700
• Body size (L × W × H) (mm): 6500 × 2300 × 2300
• Chassis model: QL1110ANPAY
• Transmission model: Allison1000
• Engine emission: GB 17691-2018 Stage 6b; exhaust smoke GB 3847-2018
