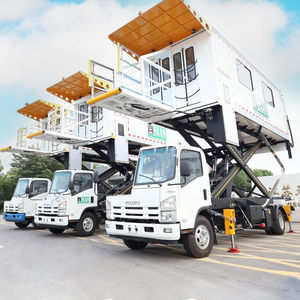

Self-propelled ambulift WTJ5040JCR

for people with reduced mobilityfor airport

Overview
The WTJ5040JCR airport ambulift (Diesel) is a purpose-built vehicle for boarding and disembarking passengers with reduced mobility (PRM) at aircraft doors. It is designed to serve door heights from 2400 to 5800 mm and can be supplied with an optional automatic gearbox. The lift platform allows precise alignment with aircraft doors on the apron.

Applications

• A300
• A319
• A320
• A321
• A340
• B737
• B747
• B757
• B767
• B777
• C919
• etc.

Key features

• Adjustable lifting platform for boarding/disembarkation of PRM
• Working height range referenced in documentation: 2400–5800 mm (overview) / 2400–4800 mm (technical spec)
• Optional automatic gearbox for apron operation
• Rear lifting platform with 0–1400 mm stroke
• Designed for safe operation alongside aircraft on the apron

Technical specifications

• Model: WTJ5040JCR
• Engine model: 4HK1-TC51
• Gearbox model: MLD-6Q / Allison2500
• Chassis model: QL1070A5PAY
• Engine emission: National Ⅴ Emissions
• Working height of platform (mm): 2400–4800
• Compatible door height (reference): 2400–5800 mm
• Maximum load (kg): 1500
• Curb weight (kg): 7200
• Overall dimensions (L × W × H) (mm): 6920 × 2410 × 3750
• External dimensions (L × W × H) (mm): 4380 × 2280 × 2258
• Rear lifting platform height (mm): 0–1400
• Additional options: available on request
