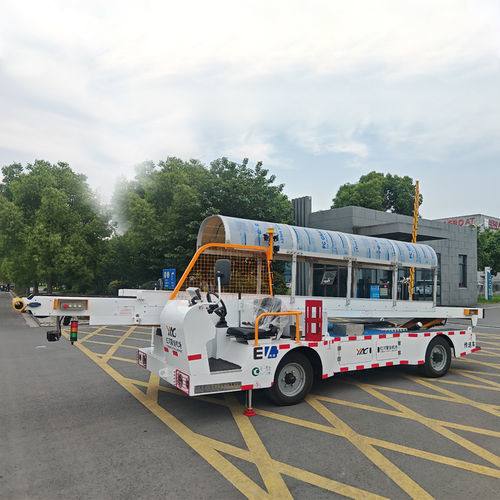

Self-propelled conveyor belt loader JSTY5040JCSE

for airport

Product overview
JSTY5040JCSE cableless conveyor belt loader (electric) is ground support equipment designed for airports to load and unload passenger baggage, parcels and mail. It is compatible with aircraft models such as B747, B757, B767, B777, DC-10, MD-11, A300, A310, A320 and A330.

Applications

• Loading and unloading loose baggage, parcels and mail.
• Ground handling operations for various narrow- and wide-body aircraft (see compatible models).

Main performance index

• Driving motor: model HCDM030HP2
• Driving motor controller: HC30LKPIC-K21-V1-TY
• Steering shaft: model 3000000-HY430A
• Drive shaft: model 2400000-HY540A
• Hydraulic motor: model HCDM007MG1
• Hydraulic motor controller: HCDM007CL1

Working range and conveyor

• Front end lifting range: 1050 - 4400 mm
• Rear end lifting range: 290 - 1680 mm
• Conveyor belt speed: 0.16 - 0.5 m/s
• Conveyor belt width: 700 mm
• Conveyor belt carrying capacity: 150 kg/m

Dimensions, capacity and mobility

• Overall dimensions (L × W × H): 8070 × 2150 × 2000 mm
• Axle spacing: 2900 mm
• Maximum vehicle speed: 30 km/h
• Overall weight: 3750 kg
• Outer circle diameter of the passage: 13500 mm

Range and additional features

• Range (indicative): Small airport: 300 + 458; Large airport: 305 + 451; Medium airport: 304 + 456
• Optional driver's cabin
• Chassis model: JSTY5040JCSE-1000000A

Energy storage

• Energy storage device assembly model: L200B01
• Total energy storage: 88.87 kWh

Technical specifications

• Model: JSTY5040JCSE
• Brand: TIANYI GSE
• Type: Cableless conveyor belt loader (electric)
• Suitable aircraft: B747, B757, B767, B777, DC-10, MD-11, A300, A310, A320, A330
• Conveyor belt width: 700 mm
• Conveyor belt speed: 0.16 - 0.5 m/s
• Carrying capacity: 150 kg/m
• Front end lifting range: 1050 - 4400 mm
• Rear end lifting range: 290 - 1680 mm
• Overall dimensions (L×W×H): 8070 × 2150 × 2000 mm
• Maximum speed: 30 km/h
• Overall weight: 3750 kg
• Energy storage assembly: L200B01
• Total energy storage: 88.87 kWh
