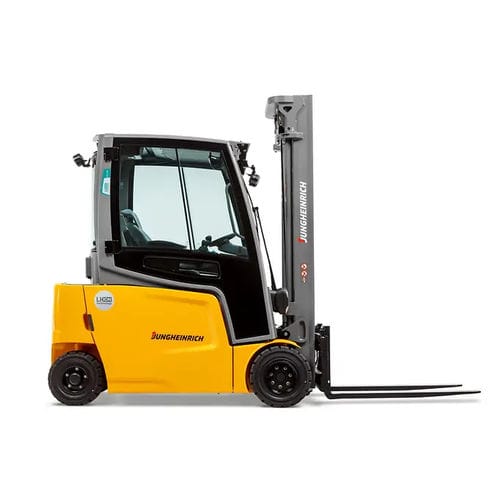

Electric forklift EFG 316 - 320

battery-poweredride-on4-wheel

Overview
The 4‑wheel electric forklifts of the Series 3 offer a balanced combination of stability and maneuverability for efficient material handling with high lift speeds or when used with attachments. The high‑mounted oscillating axle ensures optimal load distribution, delivering maximum driving stability and safety even on uneven floors. Maintenance‑free lithium‑ion batteries with fast opportunity charging provide consistent high performance at all times. The compact mast improves load visibility, the narrow steering column increases legroom, and the high‑resolution color display supports relaxed, low‑fatigue operation.

Key features

• Maximum stability even on uneven surfaces
• Excellent visibility thanks to the compact mast
• Optimized energy efficiency via the PureEnergy concept
• Powerful lift hydraulics suitable for attachment use
• Driver ergonomics designed to reduce operator fatigue

Lithium‑ion
Li‑ion Plus Jungheinrich warranty: high‑quality lithium‑ion batteries with a performance warranty of up to 8 years. Maintenance‑free technology, no battery changes required, fast opportunity charging and no gaseous emissions (no dedicated charging room/ventilation required).

Operational advantages

• Connected Trucks: option to equip the truck with telematics (Telematics box) to collect and exploit fleet data (modular starter package)
• High availability thanks to short charging times
• Reduced operating costs through energy efficiency and lower maintenance

Detailed functional features

• PureEnergy technology concept: maximum efficiency, advanced asynchronous motors and compact hydraulic unit
• Parametrizable electric steering: dynamic behavior adjustable according to driving program, reduction of unwanted movements
• Available with lithium‑ion technology: no ventilation/emissions, extended service life
• Safety solutions: hydraulic deactivation when seat unoccupied, automatic parking brake (hill hold), assistance options (driveCONTROL, liftCONTROL, addedVIEW 360°, zoneCONTROL, accessCONTROL)
• Maintenance‑free braking systems: engine braking, wear‑free disc brake
• Adaptable control concept: configurable driving programs, continuous adjustment of armrest and steering column, multiple control options
• Ergonomic operator station: reduced steering effort, adjustable column, armrest with integrated controls, suspended cabin for vibration damping, excellent visual comfort (optimized mast profiles, 4" high‑resolution display, USB port)

Table: Model overview
Model | Load capacity | Lift height | Travel speed | Overall length | Battery voltage
EFG 316k | 1,600 kg | 7,000 mm | 17 km/h | 3,144 mm | 48 V
EFG 316 | 1,600 kg | 7,000 mm | 17 km/h | 3,252 mm | 48 V
EFG 318k | 1,800 kg | 7,000 mm | 17 km/h | 3,164 mm | 48 V
EFG 318 | 1,800 kg | 7,000 mm | 17 km/h | 3,272 mm | 48 V
EFG 320 | 2,000 kg | 7,000 mm | 17 km/h | 3,272 mm | 48 V

Technical specifications

• Applicable series: EFG 316 - 320
• Capacities: 1,600 kg to 2,000 kg depending on model
• Maximum documented lift height: up to 7,000 mm
• Documented maximum travel speed: 17 km/h
• Battery voltage: 48 V
• Included concepts: PureEnergy (energy optimization), parametrizable electric steering, powerful hydraulic controls
• Safety options: accessCONTROL, driveCONTROL, liftCONTROL, addedVIEW 360°, zoneCONTROL
• Braking systems: engine brake and wear‑free disc brake
• Ergonomics: adjustable steering column, multifunction armrest, high‑resolution color display
• Batteries: lithium‑ion available (maintenance‑free), fast opportunity charging, Li‑ion Plus warranty (up to 8 years)
