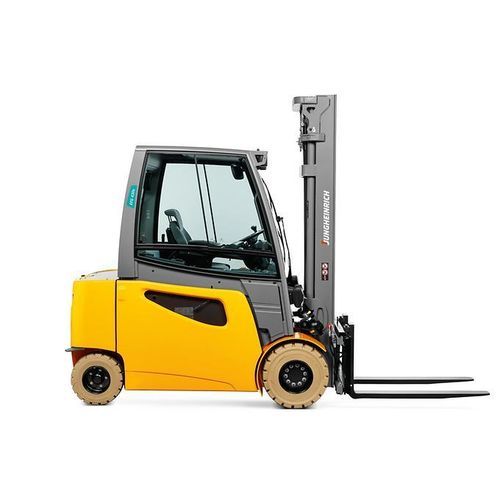

Electric forklift EFG 425 - S30

battery-poweredride-on4-wheel

Description
Our versatile and efficient 4-wheel electric counterbalance forklifts from the EFG Series 4 are designed for diverse indoor and outdoor applications. They adapt to sector-specific tasks via tailored attachments for fast handling of high loads. The PureEnergy concept significantly reduces energy consumption and ensures maximum efficiency by combining advanced asynchronous drive technology with a compact control and hydraulic system. VDI cycle measurements confirm up to 10% lower energy use versus comparable competitive models. The compact mast with an extended field of vision provides outstanding operator visibility. Additional individually adjustable controls deliver flexibility and safety. With refined ergonomics and intuitive operation, the EFG Series 4 offers powerful performance for demanding applications.

Key benefits

• Optimized energy efficiency thanks to the PureEnergy concept.
• Compact mast with extended field of vision for excellent visibility.
• Side battery change – quick and easy.
• Individually configurable control (customizable driving programs).
• Ergonomic operator station designed to reduce operator fatigue.

Lithium‑ion

• Jungheinrich Li‑ion warranty available (up to 8 years for certain Li‑ion packs).
• High availability due to extremely short charging times.
• Reduced battery replacements, longer service life and lower maintenance compared with conventional lead‑acid batteries.
• No dedicated charging room or ventilation required (no gas emissions).

Overview of models (excerpt)
Model | Load capacity | Lift height | Travel speed | Overall length | Battery voltage
EFG 425k | 2,500 kg | 7,500 mm | 17 km/h | 3,446 mm | 80 V
EFG 425 | 2,500 kg | 7,500 mm | 17 km/h | 3,591 mm | 80 V
EFG 430k | 3,000 kg | 7,500 mm | 17 km/h | 3,467 mm | 80 V
EFG 430 | 3,000 kg | 7,500 mm | 17 km/h | 3,612 mm | 80 V
EFG S30 | 3,000 kg | 7,500 mm | 17 km/h | 3,612 mm | 80 V

Features / technical specifications

• PureEnergy concept: advanced asynchronous technology combined with a compact control and hydraulic unit.
• Drive technology: latest‑generation asynchronous motors (reduced consumption).
• Available equipment packs: e.g. Pack Efficiency with curveCONTROL, Pack drive&liftPLUS for higher speeds.
• Li‑ion availability: short charging times, no dedicated charging room, no emissions, reduced total cost of ownership.
• Safety: curveCONTROL speed reduction in turns, optional automatic parking brake, low center of gravity and high‑mounted oscillating axle for stability.
• Assistance systems (optional): accessCONTROL (security/access sequencing), driveCONTROL (automatic deceleration in turns / lift height), liftCONTROL (automatic reduction of lift/translation speed at height).
• Adaptable controls: 5 configurable driving programs, continuously adjustable armrest and steering column, choice of several control types and customizable control functions.
• Operator ergonomics: low step, unobstructed floor, narrow steering column, high‑resolution color TFT display, optimized storage, large folding armrest, optional USB port, cabin/chassis decoupling for low vibrations.
• Dimensions and performance (example models): capacities 2,500–3,000 kg (EFG 425/430 variants), lift heights up to 7,500 mm, speeds up to 17 km/h.
