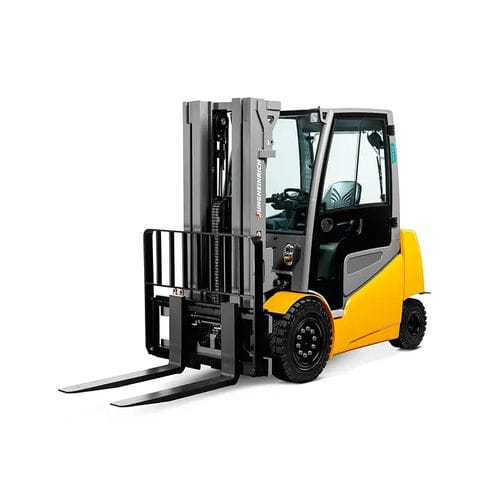

Electric forklift EFG 535 - S50

battery-poweredride-on4-wheel

Overview
Our powerful and durable 4-wheel electric forklifts of the Series 5 are designed for the most demanding indoor and outdoor applications. With intelligent mounting options they adapt to a wide range of load types. The PureEnergy concept ensures optimal energy efficiency and cost-effectiveness: under maximum use conditions consumption can be up to 20% lower than equivalent competitors.

Key benefits

• Optimized energy efficiency thanks to the PureEnergy concept.
• Excellent visibility due to the compact mast and mast-profile layout designed for optimal sight lines.
• Safe battery exchange without hoist (design facilitates replacement).
• Modular control concepts and adaptable equipment packages (e.g. curveCONTROL, drive&liftPLUS).
• Ergonomic operator workstation that enhances driver productivity.

Functional features and technologies

• Advanced asynchronous traction technology.
• Compact control and hydraulic unit.
• Hydraulic system and motor controls adaptable to application requirements.
• Configurable equipment packs: Pack Efficiency (with curveCONTROL), Pack drive&liftPLUS (increased speeds).
• Available with lithium‑ion technology: short charging times, high availability, long maintenance-free lifetime compared with lead‑acid batteries.
• Optional assistance systems: accessCONTROL (access safety), driveCONTROL, liftCONTROL.
• Automatic speed reduction in corners (curveCONTROL) and optional automatic parking brake.

Ergonomics and safety

• Low step and unobstructed floor for easy access.
• Narrow steering column, generous legroom.
• High-resolution color TFT display with intuitive interface.
• Foldable armrest, large storage areas and optional USB port.
• Low vibrations thanks to cab/chassis decoupling and oscillating axle for good stability.

Model overview (table)
Model | Load capacity | Lifting height | Travel speed | Overall length | Battery voltage
EFG 535k | 3,500 kg | 7,500 mm | 17 km/h | 3,805 mm | 80 V
EFG 540k | 4,000 kg | 7,500 mm | 16 km/h | 3,818 mm | 80 V
EFG 540 | 4,000 kg | 7,500 mm | 16 km/h | 3,962 mm | 80 V
EFG S40 | 4,000 kg | 7,500 mm | 16 km/h | 4,102 mm | 80 V
EFG 545k | 4,500 kg | 7,500 mm | 16 km/h | 3,818 mm | 80 V
EFG 545 | 4,500 kg | 7,500 mm | 16 km/h | 3,962 mm | 80 V
EFG 550 | 4,990 kg | 7,500 mm | 16 km/h | 3,962 mm | 80 V
EFG S50 | 5,000 kg | 7,500 mm | 16 km/h | 4,102 mm | 80 V

Technical features / specifications

• PureEnergy concept for reduced consumption (up to -20% vs competitors according to VDI cycle).
• Compact mast offering extended field of view with chains and hoses positioned for optimal visibility.
• Lithium‑ion options: no gas emissions, no dedicated charging room required, increased lifetime and availability.
• Safety: curveCONTROL, optional automatic parking brake, low center of gravity, high-mounted oscillating axle for stability.
• Ergonomics: modular armrest, TFT display, low vibration levels, storage optimized for the operator.
• Controls: 5 configurable driving programs, choice of several control types (including twin-pedal), customizable control element functions.
• Available equipment packs: Efficiency, drive&liftPLUS, and other modular options according to application.
• Capacities covered: from 3,500 kg to 5,000 kg; lift heights up to 7,500 mm depending on model.
