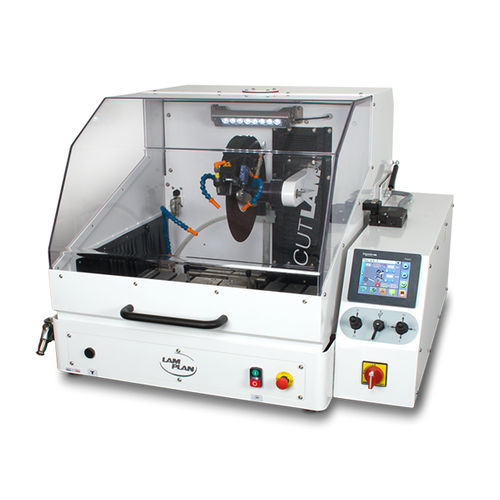

Metal cutting machine CUTLAM®3.1
discfor aeronautics

metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
metal cutting machine
Add to favorites
Compare this product


Characteristics

Dispensed product
metal
Type
disc
Other characteristics
for aeronautics

Description

It's the ultimate development of LAM PLAN and is the most advanced automatic Ø 300 mm cut-off machine in its market sector. Largest cut-off area on the market of Ø 300 mm cut-off machines The CUTLAM®3.1 offers an unprecedented cutting capacity, the machine table can move forward and backward automatically over a distance of 300 mm. New, the cut-off wheel has an automatic and linear top-to-bottom movement. With this linear movement, this new-generation of cutting machine offers a 140 mm space under the cutting wheel. The CUTLAM®3.1 has a cover which includes opening side to cut bars. Many cutting possibilities are offered This automatic cut-off machine makes it possible to cut vertically (along axis Z), over a maximum stroke of 200 mm, or to cut horizontally along axis Y, over a maximum stroke of 300 mm. It is also possible to combine the two Z and Y movements. Thus, your machine will be able to perform cutting passes with a pass number and depth, which can be programmed. This machine can optionally be equipped with a manual or automatic X axis for cutting parallel sections. Easy to use The CUTLAM®3.1 is extremely simple to operate with its large touch screen (5.7 inches) and intuitive interface. The 2 motorised axes of CUTLAM®3.1 (optional 3rd axis) can be controlled manually by two joysticks located near the control screen. The internal memory allow to save over 300 cutting programs, which can also be imported or exported via a USB port.
