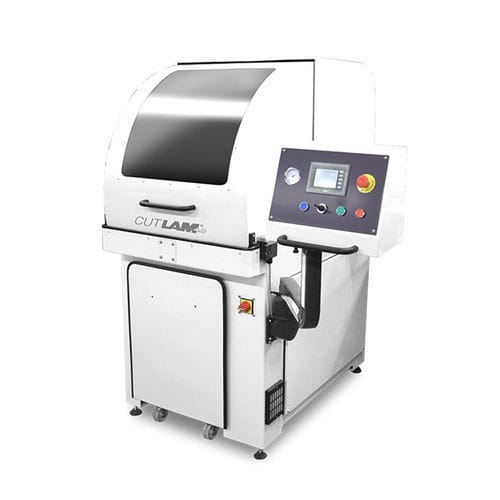

Metal cutting machine CUTLAM® 4.0

discfor aeronautics

The CUTLAM®4.0 is designed especially for manufacturing companies with high standards who are looking for high- quality and reliable equipment for heavy-duty use with a great cutting capacity. La CUTLAM®4.0 is a pedestal-mounted single-block machine with an integrated recirculation/decanter tank. The wheel’s vertical descent can be controlled automatically (oleo pneumatic) or manually using the joystick. The maximum cutting descent is 240 mm. Adapted for intensive use on heavy components, the CUTLAM®4.0 is fitted with a powerful 5.5 kW motor. The wheel’s speed is adjustable from 1000 to 4000 rpm, the feed speed is adjustable. 2 cutting modes are available: sequential automatic with adjustable frequency or continuous. An end of cycle sensor shuts off the machine and automatically raises the wheel after each operation. The controls are easy to use and intuitive: they are centralized on the 5.7’’ arm-mounted touch-screen. The wide cast-iron clamp bench has 6 T-longitudinal grooves and 5 transversal grooves, and as an optional extra may be made mobile along the X and the A axes The cover opening clears 3 sides, guaranteeing easy loading of heavy or bulky parts. Removable gates to the left and right enable you to cut long bars. The multi-point hose over the wheel and part ensures optimum cooling for high-quality cuts and consistent results. In the standard configuration, the work area is illuminated by a adjustable spotlight, and an external shower head is provided for cleaning the cutting area. In order to optimise your equipment according to your needs, a variety of accessories and optional extras are available.
