Aircraft jack 1289.00

hydraulicpneumaticelectric

Product description

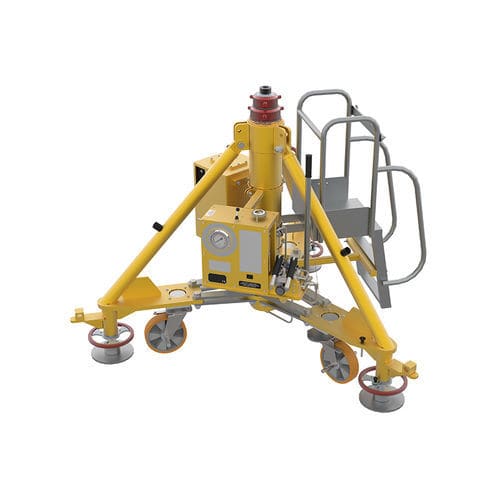

LANGA model 1289.00 is a 15 t multi-stage hydraulic tripod jack designed for aircraft jacking and leveling tasks. Its modular design enables compatibility with multiple aircraft types and simplifies maintenance and spare parts supply. Each unit is tested to regulatory and factory standards to ensure operational safety in aviation environments.

Applicability
NOSE | MAIN | TAIL
P3 Orion, B707, A320 FAMILY, C919, B737, Narrow Body UNIV (A320 Fam + B737 + A220 + EMB 170/195)

Standard Features

• Manual hand pump with high and low pressure modes.
• Pneumatic-driven hydraulic pump (optional electrohydraulic pump available).
• Hydraulic relief valve for overload protection and thermal fluid expansion compensation.
• Low-friction primary seals and secondary seal/wear ring for contamination protection.
• Hard chrome-plated cylinder bore and hydraulic/mechanical extensions.
• Manually operated safety nuts.
• Control panel with dual-scale manometer (bar/t) and bubble level for precise leveling.
• Heavy-duty caster wheels with locks and interchangeable tow bar for improved mobility.
• Legs with ball joints and mechanical height adjustment for support on uneven surfaces.
• Skydroll-resistant paint (standard yellow); unpainted parts galvanized or nitrided for corrosion resistance.
• Textile rain hat and auxiliary ladder for tall jacks.
• Palletized packaging for transport.
• Jack sockets sized per SAE AS8091.
• CE marking per EN12312; factory proof load at 150% of nominal capacity; lateral tested at 15% of vertical load.

Optionals

• Special paint color.
• Wooden closed transport box.
• Electrohydraulic pump in lieu of pneumatic pump.
• Stroke measurement device.
• Spring-loaded heavy-duty swivel casters.
• Forklift pockets for long-distance transport.
• Hydraulically operated swivel casters (controls in panel or at each wheel).
• Automatic/semiautomatic control appliance (see related equipment).
• Manometer calibration by a certified laboratory.

Related Equipment
Universal Jack Tester (P/N: 1542.00).

• Remote Control for Tripod Jacks (P/N: 1470.98).
• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• External power pack (P/N: 0671.00).
• I-jack semi-automatic jacking system (P/N: 0677.00).
• Automatic jacking and leveling Help System with:
• Linear transducers (P/N: 0339.99).
• Electronic inclinometer (P/N: 0339.98).

Technical specifications

• Model: 1289.00
• Commercial denomination: TRIPOD JACK
• Capacity: 15 t (15 tonnes)
• Type: Multi-stage hydraulic tripod jack
• Testing: Lateral tested at 15% of vertical load; factory proof loaded at 150% of nominal capacity
• Jack sockets: Dimensions according to SAE standard AS8091
• Control: Control panel with manometer (dual scale: bar/t) and bubble level
• Pumping: Manual hand pump (high/low pressure) and options for pneumatic-driven or electrohydraulic pump
• Materials/finish: Skydroll-resistant paint (yellow standard); unpainted parts galvanized or nitrided; hard chrome-plated cylinder bore
• Seals: Low-friction seals and secondary seal/wear ring for contaminant protection
• Mobility: Heavy-duty caster wheels with locks; heavy-duty tow bar interchangeable between legs; optional forklift housings and swivel casters
• Additional: Manually operated safety nuts; textile rain hat; auxiliary ladder for jacks with closed height >2 m; palletized packaging
