Aircraft jack 1488.00

hydraulicpneumaticmechanical

Product overview

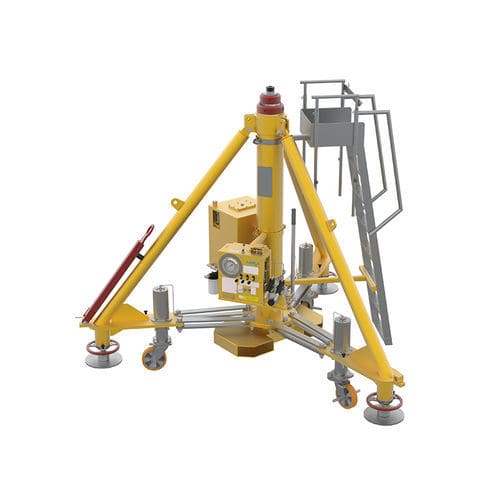

The model 1488.00 is a 30 t multi-stage hydraulic tripod jack designed for aircraft jacking operations during maintenance. LANGA Hydraulic Tripod Jacks feature a modular, aircraft-focused design that balances operational efficiency and reduced life-cycle cost. Multiple pump and accessory options enable configuration to specific ground support procedures. Each unit undergoes functional testing on a jack tester and lateral testing at 15% of vertical load before delivery.

Applicability
NOSE | MAIN | TAIL
A330 MRTT, Wide Body UNIV (A330/340/350 + B777/787/747), B767-400ER, B767-400, B767-200/300, B747-800, B747, P-3 Orion, A310, A330, A340-200/300, A340-500/600, A350, B777, A300, B787, L1011

Standard Features

• Manual hand pump with selectable high and low pressure modes.
• Pneumatic-driven hydraulic pump for rapid operation.
• Hydraulic relief valve for overload protection and compensation for fluid expansion due to temperature.
• Low-friction primary seals plus secondary seal/wear ring to protect against contaminants.
• Hard chrome-plated cylinder bore and hydraulic/mechanical extensions for wear resistance.
• Manually operated safety nuts for secure jacking.
• Control panel with dual-scale manometer (bar/t) and bubble level for precise leveling.
• Heavy-duty caster wheels with locks for secure towing and positioning.
• Interchangeable heavy-duty tow bar between legs for transport flexibility.
• Legs with joint balls and mechanical height adjustment for uneven surfaces and leveling tasks.
• Skydroll-resistant paint (standard yellow); all unpainted parts galvanized or nitrided for corrosion resistance.
• Textile rain cover for exposed components.
• Auxiliary ladder for multi-stage jacks or units with closed height > 2 m.
• Packed over pallet for shipment.
• Jack socket dimensions according to SAE standard AS8091.
• CE marking per EN12312; factory proof loaded at 150% of nominal capacity.

Optionals

• Special paint color on request.
• Wooden closed transport box.
• Electrohydraulic pump in lieu of pneumatic-driven pump.
• Stroke measurement device for position feedback.
• Spring-loaded heavy-duty swivel caster wheels.
• Forklift housings for long-distance transport.
• Hydraulically operated swivel casters for leveling and increased ground clearance (controls in panel or at each wheel).
• Automatic or semi-automatic control appliance (see related equipment).
• Manometer calibration by certified laboratory.

Related Equipment

• Universal Jack Tester (P/N: 1542.00).
• Remote Control for Tripod Jacks (P/N: 1470.98).
• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• External power pack (P/N: 0671.00).
• I-jack semi-automatic aircraft jacking system (P/N: 0677.00).
• Automatic jacking and leveling control system with linear transducers (P/N: 0339.99) or with electronic inclinometer (P/N: 0339.98).

Technical specifications

• Model: 1488.00
• Commercial name: TRIPOD JACK
• Capacity: 30 t
• Type: Multi-stage hydraulic tripod jack
• Pumping options: Manual hand pump (high/low), pneumatic-driven hydraulic pump; optional electrohydraulic pump
• Safety: Hydraulic relief valve for overload; manually operated safety nuts
• Seals: Low-friction primary seals with secondary seal/wear ring
• Cylinder and extensions: Hard chrome-plated cylinder bore and hydraulic/mechanical extensions
• Control: Control panel with dual-scale manometer (bar/t) and bubble level
• Mobility: Heavy-duty caster wheels with locks; interchangeable heavy-duty tow bar; optional spring-loaded or hydraulic swivel casters
• Height adjustment: Legs with joint balls and mechanical height adjustment; auxiliary ladder for multi-stage or closed height > 2 m
• Finish: Skydroll-resistant paint (yellow standard); unpainted parts galvanized or nitrided
• Socket standard: Jack sockets dimensions per SAE AS8091
• Certification & testing: CE marking per EN12312; factory proof load at 150% nominal; lateral tested at 15% of vertical load; each unit tested on jack tester before delivery
• Packaging: Over pallet; optional wooden closed box
