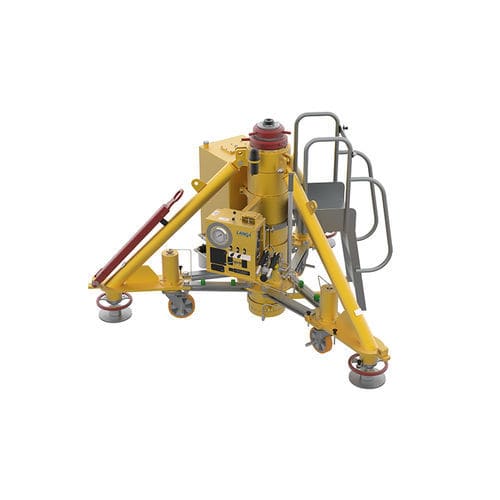

Aircraft jack 1496.00

hydraulicpneumaticelectric

Description
The model 1496.00 is a 40 t multi-stage hydraulic tripod jack designed for aircraft jacking and maintenance operations. Its modular design allows adaptation to different aircraft types and reduces lifecycle costs through the use of common components. Each unit is function-tested on a jack tester before delivery and is laterally tested at 15% of the vertical load.

Applicability
NOSE | MAIN | TAIL | CS100/300, Fokker 100, MC21, P3 Orion, MD80, SSJ100, B707, Q100/300/400, A320 FAMILY, C919, DC9, ERJ170, ERJ175, ERJ190, ERJ195, DASH8, MD90, Q400, A220, B737, Narrow Body UNIV (A320 Fam + B737 + A220+ EMB 170/195)

Standard Features

• Manual hand pump with selectable high and low pressure modes.
• Pneumatic-driven hydraulic pump option for faster operation.
• Hydraulic relief valve for overload protection and compensation for internal fluid expansion due to temperature.
• Low-friction primary seals with secondary seal/wear ring to protect against contaminants.
• Hard chrome-plated cylinder bore and hydraulic/mechanical extensions for durability.
• Manually operated safety nuts for secure load retention.
• Control panel with dual-scale manometer (bar/t) and bubble level for accurate leveling.
• Heavy-duty caster wheels with locks for maneuvering and towing.
• Interchangeable heavy-duty tow bar between legs.
• Legs with spherical joints and mechanical height adjustment for use on uneven surfaces.
• Skydroll-resistant paint (standard yellow); unpainted parts galvanized or nitrided for corrosion resistance.
• Textile rain cover.
• Auxiliary ladder for multi-stage jacks and units with closed height > 2 m.
• Palletized packaging.
• Jack sockets manufactured to SAE AS8091.
• CE marking per EN12312; factory proof loaded to 150% of nominal capacity.

Optionals

• Special paint color.
• Wooden closed box packaging.
• Electrohydraulic pump in place of pneumatic pump.
• Stroke measurement device.
• Spring-loaded heavy-duty swivel caster wheels.
• Forklift housings for long-distance transport.
• Hydraulically operated swivel casters for leveling and increased ground clearance (controls on panel or each wheel).
• Automatic / semi-automatic control appliance (see related equipment).
• Manometer calibration by certified laboratory.

Related Equipment

• Universal Jack Tester (P/N: 1542.00).
• Remote Control for Tripod Jacks (P/N: 1470.98).
• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• External power pack (P/N: 0671.00).
• I-jack, semi-automatic aircraft jacking system (P/N: 0677.00).
• Help system — automatic jacking and leveling control system:
• With linear transducers (P/N: 0339.99).
• With electronic inclinometer (P/N: 0339.98).

Technical specifications

• Model designation: 1496.00
• Commercial name: Tripod Jack
• Capacity: 40 t
• Type: Multi-stage hydraulic tripod jack
• Pumping options: Manual hand pump (high/low pressure), pneumatic-driven hydraulic pump; optional electrohydraulic pump.
• Safety: Hydraulic relief valve for overload protection; manually operated safety nuts.
• Seals & surfaces: Low-friction primary seals with secondary seal/wear ring; hard chrome-plated cylinder bore and extensions.
• Mobility & handling: Heavy-duty caster wheels with locks; interchangeable tow bar; optional forklift housings.
• Standards: Jack sockets per SAE AS8091; CE marking per EN12312; factory proof loaded to 150% of nominal capacity; laterally tested at 15% of vertical load.
• Finish: Skydroll-resistant paint (standard yellow); unpainted parts galvanized or nitrided.
