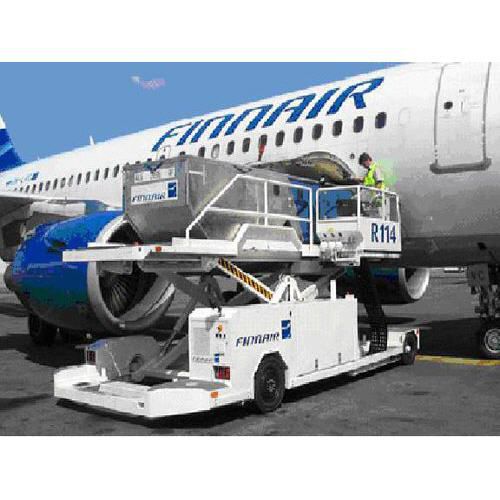

Scissor high loader CMLT 3.7
freightdieselhydraulic

scissor high loader
scissor high loader
Add to favorites
Compare this product


Characteristics

Technology
scissor
Applications
freight
Motor type
diesel, hydraulic
Domain
for airport
Load capacity

3,700 kg
(8,157 lb)

Description

Lifting range of platform: 480 mm – 3.600 mm Payload: 3.700 kg Loading capacity: 2 cargo containers LD 3 or 2 cargo containers LD 46 AKH Working surface of platform: 1.700 mm x 6.880 mm Distance between stops: minimum 4.200 mm Length: 6.880 mm Width: 3.120 mm Height: 1.680 mm Service weight: 7.800 kg Ground clearance: 130 mm Turning circle radius: approx. 7,9 m Tyres: front: CSE 23 x 10-12, rear: CSE 250 - 15 Travelling speed: 25 km/h ( adjustable ) 6 km/h (creep speed by lifted platform) Cargo transfer speed: 0.3 m/s: (adjustable) Speed of wind allowed when loading: 20m/sec Truck loading possibility up to 1600 mm Powertrain: The power train is accommodated - well accessible - at the driver's side of vehicle directly in front of the rear wheels. This way, very positive effects with regard to sound emission at the driver's place are achieved. Latest generation Deutz diesel engine type TCD 2011 L04 (EURO 3) with electronic various load condition control EMR 3 is used, power output 50 kW,suitable for ambient temperatures of -25°C up to +60°C. The hydraulic pump unit is driven via a torsion elastic coupling. For optimum operating mode in various load conditions, the regulation of the diesel engine is controlled electronically. The fuel tank capacity of 90 litres is sufficient for approx. 24 hours of operation.
