Column type high loader SPK-36
freighthydraulicfor airport

column type high loader
column type high loader
Add to favorites
Compare this product


Characteristics

Technology
column type
Applications
freight
Motor type
hydraulic
Domain
for airport

Description

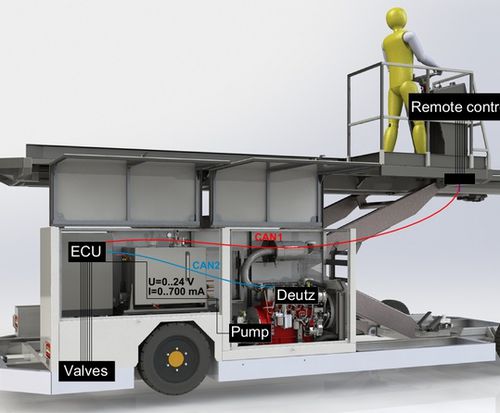

Self-propelled container loader SPK-36 (hereinafter SPK) is designed for carrying and loading/unloading containers: LD1, LD2, LD3, LD3-46, LD-6, LD-8, LD11 and pallets PL-6 on lower and upper decks of aircrafts with a threshold height up to 3.6 m. and container dollies with a max. height by rolls of 495 mm. SPK services the following aircraft types: Upper decks - B 707, B 727, B 737, DC-8F, DC-9F; Bottom decks - А 310, А 319, A 320, A 321, А 330, А 340, B 747, B 767, B 777, DC-10, MD-11, IL-86. The machine is designed for operation on airport aprons and in civil aviation warehouses. The construction of SPK complies with the requirements of the following technical standard documents: AHM 910, AHM 911, AHM 913, AHM 915, AHM 936, ОСТ 54-3-273.81-2001, EN 1915-1, EN 1915-2, EN 12312-9.
