Vacuum lifting system Basic

baggagefor airport

Overview

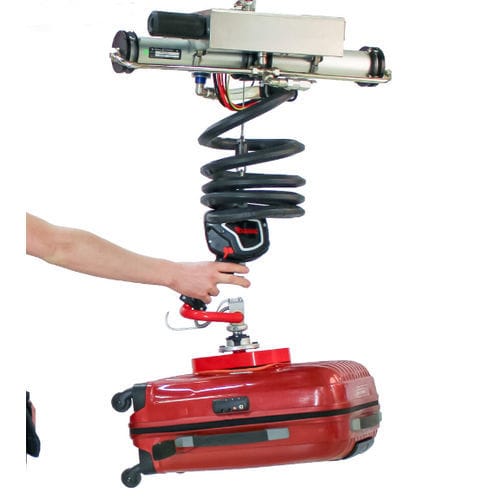

Basic baggage gripper with hook is an all-purpose lifting device designed for fast, smooth baggage handling at airports. The device replaces manual lifting to reduce repetitive strain injuries and awkward working positions when moving luggage between carts and conveyor belts.

Controlled lifts
As soon as the Basic gripper touches down on a surface it locks in place and is ready to lift. The user controls lift/lower speed via up and down buttons with proportional speed (the more the button is pressed, the faster the motion). The unit also offers endless rotation of the load for precise positioning.

Intuitive and easy to learn
The ergonomic handle fits hands of all sizes and can be used left- or right-handed without adjustments. The controls are intuitive, enabling fast training and increased productivity compared with manual lifting.

Safer lifting
The Basic gripper will not start a lift unless preset vacuum level is reached. If vacuum drops during a lift, the device slowly lowers to the floor. Two options are available for releasing the load:

• Release in the air – a firm press of the red button releases the load immediately.
• Unload first – the load must rest on a surface before the red button permits release.

Reliable lifting technology
Built on proven lifting aid technology developed by Lifts All since 1994, the Basic vacuum gripper combines reliable components with simple operation and safe vacuum-based lifting.

Product details (summary table)

• Height (mm): 1143, 671
• Weight (kg): 13.5, 16.7215
• Maximum capacity (kg): 50
• Gripping technique: Vacuum/hook
• Bal-Trol model: Horizontal SM, Vertical
• Stroke length (mm): 1500
• Type of item to be lifted: Luggage

Available versions / examples

• Basic (without load guard) - Vertical - 50 kg (stroke 1500 mm)
• Basic (without load guard) - Horizontal - 50 kg (stroke 1500 mm)

Technical specifications

• Model name: Basic
• Maximum capacity: 50 kg
• Height options: 1143 mm and 671 mm
• Weight options: 13.5 kg and 16.7215 kg
• Gripping techniques: Vacuum and hook
• Bal-Trol compatibility: Horizontal SM and Vertical
• Stroke length: 1500 mm
• Intended load type: Luggage / baggage
• Control: Up/down proportional buttons; endless rotation
• Safety: Lift blocked if preset vacuum not reached; slow lower on vacuum drop; two release methods (air release or unload-first)
• Typical applications: Airport baggage handling for lifting from carts to conveyors
