Mapping aircraft F-16 Block 70/72

twin-enginepiston engine

Overview

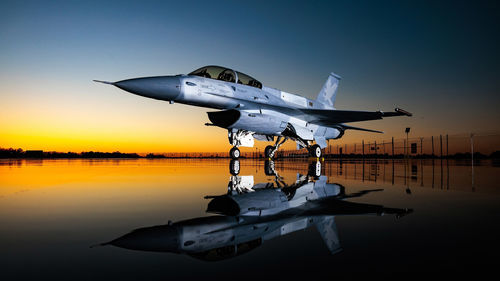

The F-16 Block 70/72 Fighting Falcon is a modernized 4th-generation multirole fighter configured to support international air operations into the mid-21st century. The platform combines structural life improvements, advanced avionics and sensor integration to enhance mission effectiveness across air-to-air and air-to-surface roles.

Key Capabilities

• APG-83 AESA radar (Northrop Grumman) providing high-resolution situational awareness, all-weather targeting and advanced mapping displays.

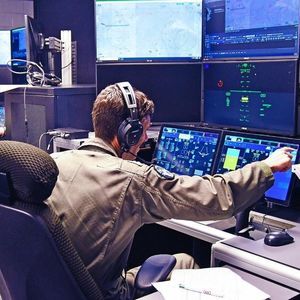

• Modern cockpit and displays: high-resolution Center Pedestal Display (CPD) with color moving maps, enlarged air-to-air situation displays, zoom/slew functions and compatibility with color/night helmet-mounted displays.
• Sensor and targeting integration: Sniper® Advanced Targeting Pod and Legion-ES™ IRST support for improved detection, tracking and targeting in contested environments.
• Comprehensive weapons integration: more than 3,300 certified carriage and release configurations supporting over 180 weapon and store types.
• Airframe and propulsion options: conformal fuel tanks for increased range with minimal aerodynamic penalty and available upgraded engine options for improved performance.

Operational & Safety Features
Designed to improve battlespace awareness and survivability, the Block 70/72 integrates modern sensors, helmet display compatibility and the Automatic Ground Collision Avoidance System (Auto GCAS) to reduce controlled flight into terrain (CFIT) risk.

Airframe, Sustainment & Service Life
New-production Block 70/72 aircraft incorporate structural upgrades extending structural life to approximately 12,000 flight hours, supporting an operational service life on the order of four decades for many operators and reducing the need for extensive structural repairs.

Integrated Supply Chain & Partnerships
Program sustainment leverages a global supply chain with extensive supplier participation across multiple countries and integrated partnerships for production, sustainment and industrial support.

Economic Impact

• Domestic supplier engagement and jobs associated with production and sustainment.
• Global economic contributions through international suppliers, sustainment activities and program support.

Media & Resources
Available resources include embedded video, downloadable product cards, upgrade summaries and technical documents offering capability highlights and program information.

Technical specifications

• Designation: F-16 Block 70/72
• Role: Advanced 4th-generation multirole fighter
• Radar: Northrop Grumman APG-83 AESA
• Avionics/Displays: High-resolution Center Pedestal Display (CPD) with color moving maps and helmet-display compatibility
• Sensors/Targeting: Sniper® Advanced Targeting Pod integration; Legion-ES™ IRST integration
• Safety: Automatic Ground Collision Avoidance System (Auto GCAS)
• Weapons Integration: >3,300 certified carriage/release configurations; supports >180 weapon/store types
• Structural life: Extended structural life to ~12,000 flight hours; design life supporting ~40 years of service for many operators
• Fuel/Range: Conformal fuel tanks available to increase fuel and range with minimal aerodynamic penalty
• Production & Sustainment: Global supplier base and integrated supply chain partnerships
• In-service outlook: Configured to enable international fleet operation into 2060 and beyond
