Electrical power supply connector 1900
for aircraftlockingscrew

Electrical power supply connector - 1900  - LPA CONNECTION SYSTEMS LTD - for aircraft / locking / screw

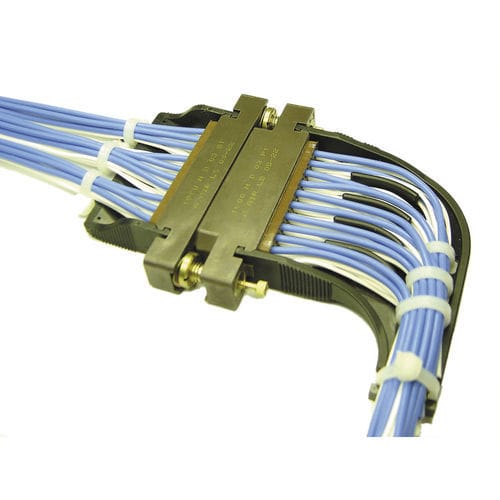

Electrical power supply connector - 1900  - LPA CONNECTION SYSTEMS LTD - for aircraft / locking / screw
Electrical power supply connector - 1900  - LPA CONNECTION SYSTEMS LTD - for aircraft / locking / screw - image - 2
Electrical power supply connector - 1900  - LPA CONNECTION SYSTEMS LTD - for aircraft / locking / screw - image - 3
Electrical power supply connector - 1900  - LPA CONNECTION SYSTEMS LTD - for aircraft / locking / screw - image - 4
Electrical power supply connector - 1900  - LPA CONNECTION SYSTEMS LTD - for aircraft / locking / screw - image - 5
Electrical power supply connector - 1900  - LPA CONNECTION SYSTEMS LTD - for aircraft / locking / screw - image - 6
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Applications
for aircraft
Connection type
locking, screw
Voltage

1,500 V

Primary current

Max.: 50 A

Min.: 5 A

Description

LPA Channel Electric offer a range of Amphenol Air-LB connectors to the EN3545 standard. High density of contact points Complies with all major aviation and defence requirements: EN3545 and EN3155 Wide range of configurations 5 to 78 contacts, contacts size from 8 to 22, gauge 8 to 26 AWG Arrangements for copper contacts (9) and for aluminium cable contacts (3) Locking by screw or 1/4 turn Up to 36 keying combinations Interfacial sealing by compression of a gasket Contacts: EN3155 Connectors: EN3545 50 contacts, size 20, gauge 20 to 24 AWG Locking by screw or 1/4 turn Up to 36 keying combinations Interfacial sealing by compression of a gasket Connectors: EN3545 Derived from 1900 / EN3545 connectors Connectors for 7 optical contacts as per EN4531-101 Up to 36 keying combinations Aviation, railway, defence
