Board connector M83513
PCBfor aircraftmicro-D

board connector
board connector
board connector
board connector
board connector
board connector
board connector
Add to favorites
Compare this product


Characteristics

Type
board, PCB
Applications
for aircraft
Format
micro-D, Socket, card
Shape
rectangular, straight
Other characteristics
custom, miniature, micro
Primary current

3 A

Voltage

100 V

Description

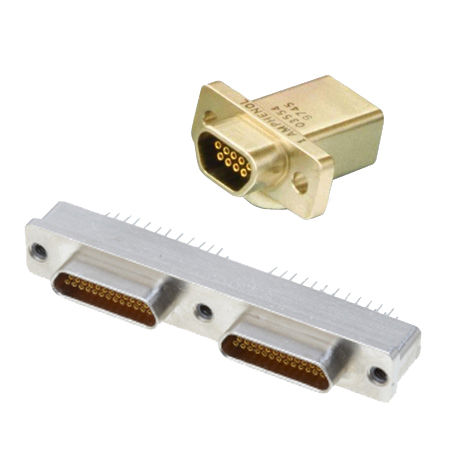

The Amphenol Micro-D connector series (M83513) offers proven military spec performance and reliability in rectangular and stripline micro connectors. The Micro-D connectors are available in rectangular D, strip and custom card edge configurations, with contacts on .050 (1.27) centres. Inserts in Micro-D miniature connectors with signal and coax/power are also available. The socket contact is a precision fabricated tube. Pin and socket contacts are epoxy retained in high-grade thermoplastic insulators. The contact system has proven reliability, exceeding the performance specifications of MIL-DTL-83513. Terminations are available in a broad range including solder cup, terminated to wire harness, vertical and right angle PCB. Plastic and metal shell versions are available in Micro-D series, in a broad range of shell finishes. A board range of mounting hardware is available (jackscrews, posts, guide pins), as well as straight and angled back-shell. Amphenol design not like other stamped and formed designs Fully qualified per MIL-DTL-83513 requirements One piece contact with equally spaced compliant tines Gold over nickel versus gold over the copper flash barrier Tighter control over the plating process Uniform plating thickness Automated stamping versus twist process variations Integrated closed engaging end ensures uniform insertion forces Low mating/unmating force Preferred contact for space and satellite applications Continuous connection along the length of the contact beam (line contact) versus multi-point connection (point contact) Aerospace Military Missiles Oil and gas exploration Medical
