RF connector ASR
PCBfor aircraftrectangular

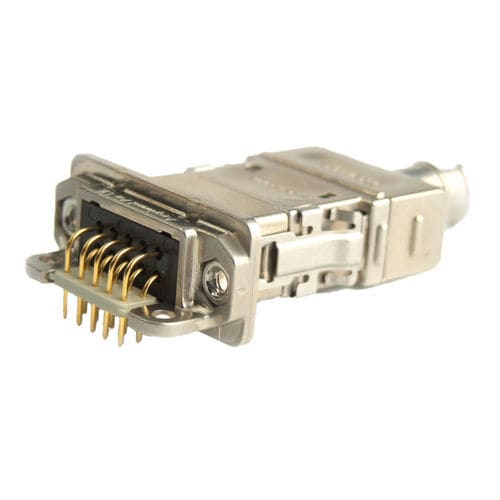

RF connector - ASR - LPA CONNECTION SYSTEMS LTD - PCB / for aircraft / rectangular
RF connector - ASR - LPA CONNECTION SYSTEMS LTD - PCB / for aircraft / rectangular
RF connector - ASR - LPA CONNECTION SYSTEMS LTD - PCB / for aircraft / rectangular - image - 2
RF connector - ASR - LPA CONNECTION SYSTEMS LTD - PCB / for aircraft / rectangular - image - 3
RF connector - ASR - LPA CONNECTION SYSTEMS LTD - PCB / for aircraft / rectangular - image - 4
Add to favorites
Compare this product


Characteristics

Type
RF, PCB
Applications
for aircraft
Shape
rectangular, straight
Connection type
snap-on, locking
Other characteristics
MiL, lightweight, miniature, compact, small
Voltage

1,500 V

Primary current

Max.: 7.5 A

Min.: 5 A

Description

A new concept in miniature connectors, the ASR connector is designed for performance, has a compact footprint and is easy to mate. The ASR connector series features a simple self locking snap mechanism and with the ability to use in a blind mating situation. They connect and disconnect with two fingers! It is lightweight, durable and environmentally sealed. The ASR connector is polarised in several aspects to prevent mis-mate, accepts standard mil spec contacts, RF contacts and can be supplied with PCB contacts. Accessories including cable clamps and backshells are also available. Small footprint Compact design Lightweight Self Locking Easy mate and de-mate using two fingers Polarised Mixed contacts available Temperature range of -55°C to +175°C 500 matings Accessories, backshells and cable clamps are available ROHS and REACH compliant Temperature Range of -55°C to +175°C 500 matings Contact rating 5A to 7A RF versions available Screened and unscreened versions available Straight and right angle PCB versions available Aerospace – civil and military In flight entertainment Marine Rail Industrial
