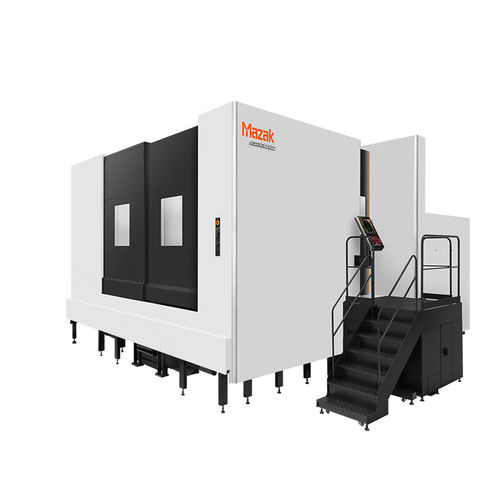

4-axis machining center HCN-16800QS
horizontalCNCdouble-column

4-axis machining center
4-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
4-axis
Spindle orientation
horizontal
Other characteristics
CNC, for the aerospace industry, double-column
Rotational speed

3,000 rpm
(18,850 rad.min-1)

X travel

2,800 mm
(110 in)

Y travel

2,000 mm
(79 in)

Z travel

1,850 mm
(73 in)

Description

The quill diameter of Φ130 mm and 550 mm stroke provides accessibility to machining areas that normally are difficult to reach The integral spindle / motor with 45 kW (60 HP) [ 40 % ED ] ensures high-accuracy machining of large workpieces The headstock vertical motion is smoothly driven at high speed by twin ball screws The NC table rotates at high speed with high accuracy by utilizing a roller gear cam Ball screw core cooling (X , Y , Z, W-axes) and the symmetrical double column design minimise heat displacement Fully enclosed cover allows use of Niagara coolant and coolant through spindle systems Table size : 1600 mm × 1250 mm MAZATROL SmoothG, the advanced CNC designed for ease of operation - standard equipment CAPACITY - Maximum workpiece diameter - 3,000 mm Maximum workpiece height - 2,400 mm W axis (boring spindle stroke) - 550 mm SPINDLE (standard) - Spindle taper hole - 7/24 taper, No 50 Boring spindle diameter - 130 mm TABLE & PALLET - Pallet width - 1,250 mm Pallet length - 1,600 mm ATC TOOL MAGAZINE - No. of tool pockets (standard) - 80 Tool shank - BT50(MAS,CAT,DIN) MACHINE SIZE - Width - 8,518 mm Length - 8,900 mm
