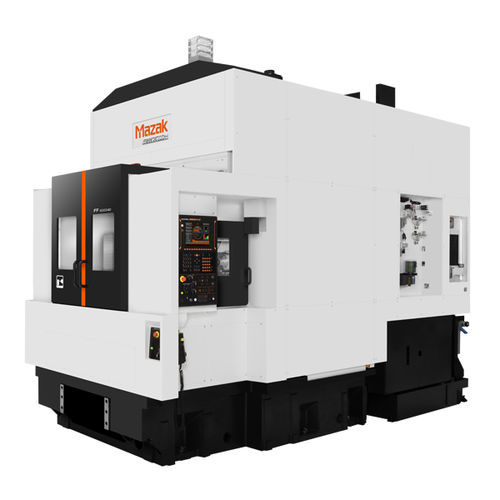

Compact high speed horizontal machining center for mass production
High productivity - reduced non-cutting time due to high speed acceleration and rapid traverse rate
Feed rate (X,Y.Z-axes) - 62000 mm/min
Max. acceleration (X.Y.Z-axes)
High reliability - all machine linear motion is in the column to isolate the ball screws from machined chips
Automotion - Fixed table construction provides convenient automatic fixture mounting for exceptional versatility
Advanced features of the MAZATROL SmoothC CNC
0.7G/1.0G/1.5G
CAPACITY - Maximum workpiece diameter - 720 mm
Maximum workpiece height - 870 mm
SPINDLE (standard) - Spindle taper hole - 7/24 taper, No. 40
TABLE & PALLET - Pallet width - 500 mm
Pallet length - 500 mm
ATC TOOL MAGAZINE - No. of tool pockets (standard) - 20
Tool shank - MAS BT-40 /CAT-40 / HSK-A-63
MACHINE SIZE - Width - 1,750 mm
Length - 4,000 mm
