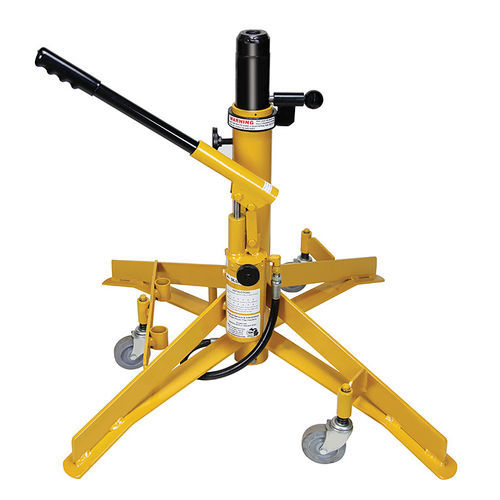

Aircraft jack A6 series

hydraulictripod

This Series basic design from Meyer Hydraulics has served as the general aviation industry standard for over 55 years. The A600 Series and its predecessors are being used by professional service technicians around the world providing confident lifting of airplanes and helicopters weighing up to 8000 lbs. (3629kg) with the security and features one should demand in an aircraft jack. Even after the additional TriTask features have been added, the A600 Series still continues to be surprisingly affordable. A: INNER SLIDE TUBE – The 2.375″ (60mm) diameter powder-coated Tube forms the foundation of the TriTask Aircraft Jack System. The zigzag pattern of .5″ (13mm) safety lock-out holes are vertically spaced 1″ (25mm). The tube’s top has a 1″ (25mm) diameter threaded hole designed to receive an AT-JPRn Jacking Point Receiver, a Top-of-the-Jack Load Cell or an AT-EBnnn Extension Bar. B: POSITIVE SAFETY LOCK – Spring-loaded safety pin “pops” into the Inner Slide Tube and rests on top of the Jack’s frame to prevent the accidental lowering of the aircraft. C: STEADY KNOBS remove any side movement of the Inner Slide Tube after the airplane or helicopter is raised to the desired height. D: TWO ACCESSORY TUBES are provided to allow the operator to put in accessories or tools for on-board storage if desired. E: MILLED FLAT AREA ON EACH LEG increases surface contact to help prevent any hanger floor damage. F: LOW HEIGHT LEG DESIGN provides maximum gear door clearance, with one of the four sections completely free of any protrusions. The four legs insure excellent stability with its 26.875″ (68.3cm) square footprint.
