High performance, compact dimensions, and weight make these electric speed controllers perfect for electric aircraft, boats and ships, motorbikes, UAVs, multirotors, various EVs, paramotors (special FW), pumps, winches and cranes, undercarriage, and other industrial applications.

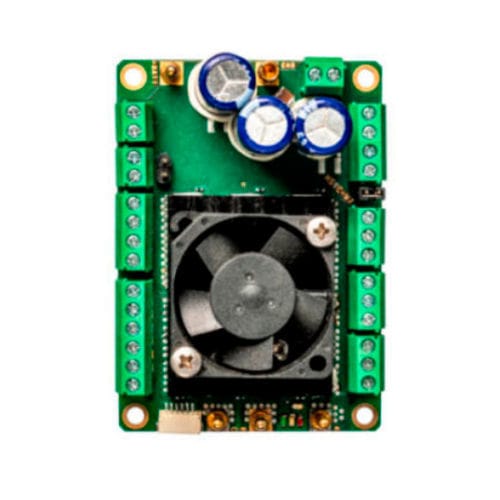

HSBC series brushless motor controllers are among the smallest in terms of dimensions and performance (up to 3 kW). They are exceptional for their range of configurations, reliability, ease of installation and configuration.
This motor controller is used in various project made by well known company Husqvarna.
max continuous power1
1,4-3 kW
voltage
10-63 V
max continuous current1
40-50 A
peak current
56-70 A
efficiency
up to 99%
monitoring
complex data monitoring
cooling
air/fluid
weight
80 g
COMMUNICATION
CAN | RS232 | RS485
MOTOR SENSORS
3 Hall sensors
CONTROL SIGNALS
PWM | potentiometer | voltage | data | log.signal
VARIOUS ADJUSTABLE PARAMETERS
69 parametres.
VERY HIGH EFFICIENCY 98-99%
EMERGENCY DISCONNECTION
Safe to disconnect during the operation.
COMPLETE GALVANIC INSULATION
INTERNAL DATA LOGGING (BLACKBOX)
Reports 22 values.
SUPPORT OF EXTERNAL DISPLAY UNITS
Real time monitoring of important values.
