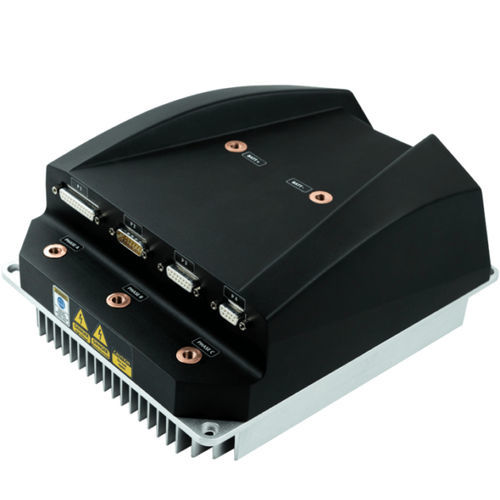

Brushless motor controller HBC 400400

BLDC400VDC50 kW...100 kW

High performance, compact dimensions and weight make these electric speed controllers perfect for electric aircraft, boats and ships, motorbikes, UAVs, multirotors, various EVs, paramotors (special FW), pumps, winches and cranes, undercarriages and other industrial applications. These high-performance brushless BLDC (PMSM) motor controllers (up to 100kW) apply the most advanced IGBT modules in order to achieve maximum efficiency. These are an intelligent solution with high-performance 32-bit ARM Cortex processors used for control. This class offers an excellent and unbeatable ratio of dimensions to weight while achieving high performance. They offer easy installation and setup. Controller HBCi 400400 was used in various Airbus Group projects. max continuous power1 100 kW voltage 100-400 V max continuous current1 400 A peak current 560 A efficiency up to 99% monitoring complex data monitoring cooling air/fluid weight 5800 g COMMUNICATION CAN | RS232 | RS485 MOTOR SENSORS 3 Hall sensors CONTROL SIGNALS PWM | potentiometer | voltage | data | log.signal VARIOUS ADJUSTABLE PARAMETERS 69 parametres. VERY HIGH EFFICIENCY 98-99% EMERGENCY DISCONNECTION Safe to disconnect during the operation. COMPLETE GALVANIC INSULATION INTERNAL DATA LOGGING (BLACKBOX) Reports 22 values. SUPPORT OF EXTERNAL DISPLAY UNITS Real time monitoring of important values.
