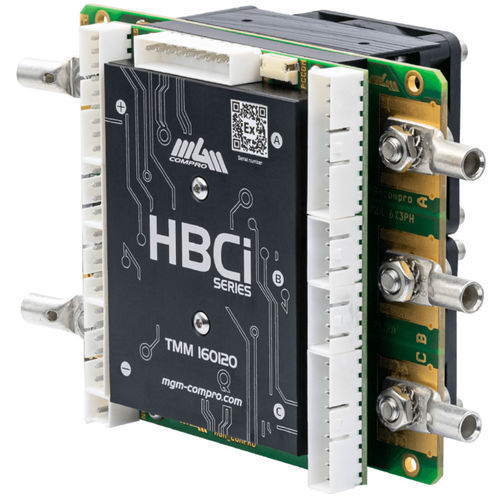

Brushless motor controller HBCI 160120

BLDCDC10 kW...20 kW

High performance, compact dimensions and weight make these electric speed controllers perfect for electric aircraft, boats and ships, motorbikes, UAVs, multirotors, various EVs, paramotors (special FW), pumps, winches and cranes, undercarriages and other industrial applications. MEDIUM VOLTAGE brushless DC motor controllers HBCi 160120 are high-performance ESCs for medium performance BLDC and PMSM motors (up to19 kW). This class offers an excellent and unbeatable ratio of dimensions to weight while achieving high performance. They offer easy installation and setup. This motor controller is used in various projects made by VOP.cz. max continuous power1 19 kW voltage 63-120 V max continuous current1 160 A peak current 250 A efficiency up to 99% monitoring complex data monitoring cooling air/fluid weight 550 g COMMUNICATION CAN | RS232 | RS485 MOTOR SENSORS 3 Hall sensors CONTROL SIGNALS PWM | potentiometer | voltage | data | log.signal VARIOUS ADJUSTABLE PARAMETERS 69 parametres. VERY HIGH EFFICIENCY 98-99% EMERGENCY DISCONNECTION Safe to disconnect during the operation. COMPLETE GALVANIC INSULATION INTERNAL DATA LOGGING (BLACKBOX) Reports 22 values. SUPPORT OF EXTERNAL DISPLAY UNITS Real time monitoring of important values.
