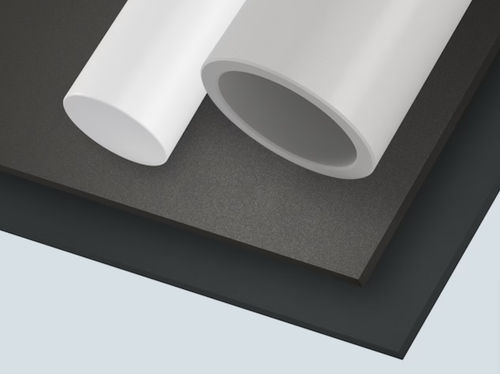

Rod PTFE Fluorosint® series
platetubefor the aerospace industry

rod PTFE
rod PTFE
Add to favorites
Compare this product


Characteristics

Shape
rod, plate, tube
Other characteristics
for the aerospace industry
Operating temperature

260 °C (500 °F)

Description

Fluorosint® Enhanced PTFE Chemical resistance parallels PTFE Continuous use temperatures to 500°F (260°C) Compared to PTFE higher load carrying capability 1/9 of the deformation under load lower coefficient of thermal expansion Fluorosint enhanced PTFE’s unique properties are the result of a proprietary process in which synthetically manufactured mica is chemically linked to virgin PTFE. This bonding results in properties not normally attainable in reinforced PTFE. Fluorosint grades offer an excellent combination of low frictional properties and dimensional stability. Fluorosint® 500 PTFE Exceptional Dimensional Stability for Precise Tolerance Control Fluorosint® 500 PTFE has nine times greater resistance to deformation under load than unfilled PTFE (see Figure 19). Its coefficient of linear thermal expansion approaches the expansion rate of aluminum, and is 1/5 that of virgin PTFE -- often eliminating fit and clearance problems (see Figure 20). It is 1/3 harder than virgin PTFE, has better wear characteristics and maintains low frictional properties. Fluorosint® 500 PTFE is also non-abrasive to most mating materials.
