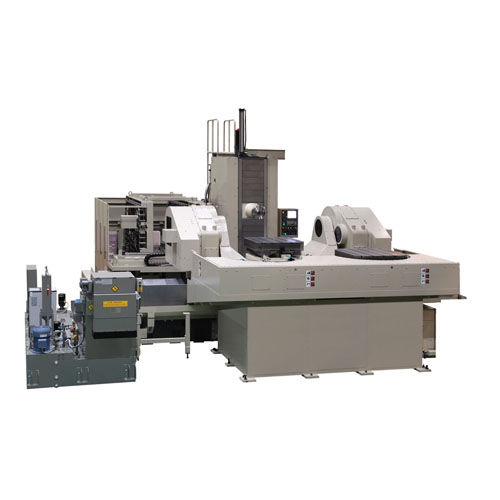

5-axis machining center HU100-5XL
horizontalfor the aerospace industry

5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Other characteristics
for the aerospace industry
Rotational speed

Min.: 15 rpm
(94 rad.min-1)

Max.: 4,500 rpm
(28,274 rad.min-1)

X travel

2,000 mm
(79 in)

Y travel

15,000 mm
(591 in)

Z travel

1,400 mm
(55 in)

Description

●We have the No. 1 delivery record of trunnion type horizontal 5 axes machining centers.            ●A wide variety of palette sizes from 500 to 1000 are available.        ●The center of rotation of A axis is higher than the palette, so rigidity against processing thrust is high and effect of index precision is low.    ●B axis sliding surfaces adopts hybrid method of sliding and rolling, which has both the rigidity of sliding and smooth motion of rolling.       ●A fastest A and B axes indexing speed in the class reduces process time.
