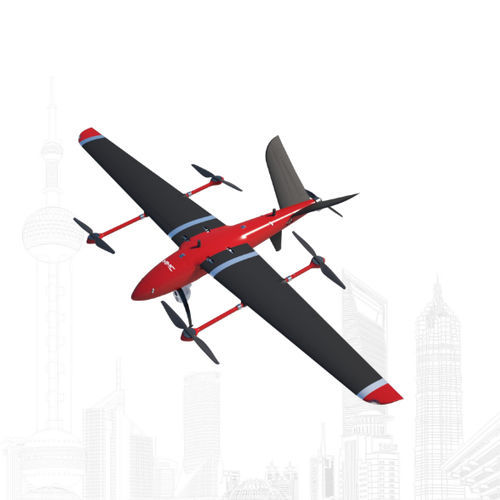

Industrial drone Griflion M10

mappinginspectionfixed-wing

Griflion M10 is a medium-sized composite vertical take-off and landing fixed wing, the flight platform adopts quick-disassembly design, which can be quickly assembled and deployed without tools, the streamlined fuselage and V-shaped tail design, the flight is stable and reliable, the endurance is up to 150 minutes, and the mission load is up to 10kg, which supports ail kinds of industry loads and mission pods. M10 is characterized by high automation, long endurance, stable flight time, and high operational efficiency. M10 can be equipped with LIDAR, photoelectric pods and other widely used in high-precision mapping and inspection tasks. Main material: composite material Packing size: (box 1) 1550*630*770mm; (box 2): 1060*550*630mm Maximum size (including blades): 3964*1916*791mm Fuselage weight: 18kg (without battery and mounting) Unladen weight: 27.8kg Endurance: 150min@unloaded; 140min@1kg; 125min@5kg 110min@8kg; 100min@10kg Maximum wind résistance: Level 7 (fixed wing mode) Frequency band: 1.4Ghz&450Mhz Encryption mode: AES128 Mapping distance: 80km Operating température: -20°060°C Working humidity: 10%~90% without condensation Protection level: IP54 Electromagnetic Interférence: 100A/m (Industrial Frequency Magnetic Field) Cruise speed: 23m/s Maximum flight speed: 35~40m/s Maximum climbing speed: ^3m/s Maximum descent speed: ^2.5m/s Common battery: 30000mah*4 Features - Fully autonomous take-off and landing flight, with wide range of site adaptability and strong maneuverability. - The mission payload is designed to be detachable and quickly replaceable, supporting the use of single-optical/dual-optical tracking/three-optical pods and other payload requirements.
