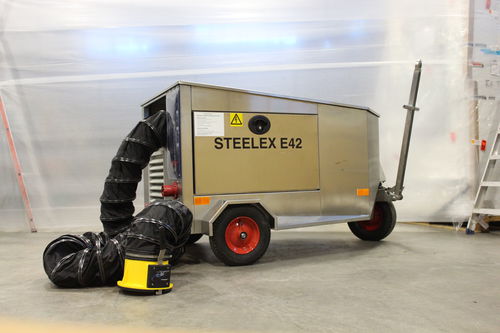

Towed PCA unit E42
electricfor aircraft

towed PCA unit
towed PCA unit
towed PCA unit
Add to favorites
Compare this product


Characteristics

Mobility
towed
Other characteristics
electric
Applications
for aircraft
Heating power

40.2 kW

Air flow

Max.: 3,800 m³/h (134,195.734 ft³/h)

Min.: 0 m³/h (0 ft³/h)

Description

NORDIC HEATER E42 TECHNICAL DATA Power source 50 Hz, 3 phases 400 V, 63 Amp. Heating elements 40.2 kW / 150,000 BTU. Direct driven by an electric motor and speed controlled by a frequency inverter. Patent pending high performance electric fan unit with two fan speeds. Low and high. Max flow: 3800 m³/h / 2237 CFM. Max pressure 3 kPa / 0,44 PSI. Temperature + 10ºC / 50ºC F – + 80ºC / 176ºF. with presets + 30ºC / 86ºF and + 60ºC / 140ºF. ​The heater is equipped with tow bar, and front wheel with parking brake activated by the drawbar. Fan and heater are powered through an external 5 pin CEE socket, 63 AMP. OPTIONS Heater hose longer than standard 7,5 meters / 295 inch. Beacon light. Spare parts kit. GPS positioning system. Optional colors and logos. ​Cable basket, for external electric cable, mounted on the heater roof. MORE DETAILS Three wheeled trailer with 8 inch puncture-resistant wheels. Chassis, roof and hatches, are made of stainless steel. New, high- efficiency heater fan. Clean, open design that allows for service-friendly access to all components. 7,5 m / 295 inch long PVC coated, 203 mm / 7,99 inch diameter, heater air hose with very resistant PCA connection to aircraft as standard. Patented PCA connection to the cabin, made of nylon with a neoprene seal, the connection is UV resistant and resistant to chemicals and fuel. DIMENSIONS Length 1950 mm 77 inch Width 1220 mm 48 inch Height 1110 mm 44 inch Weight 350 kg 772 lbs

VIDEO
