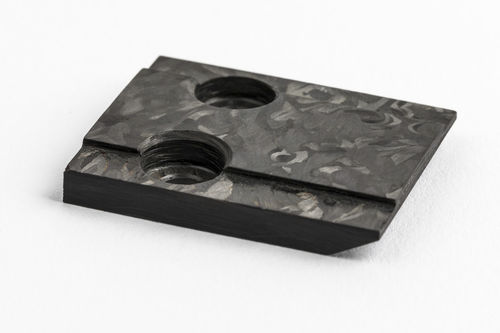

Sheet polyimide H310®

aeronautical

Overview
These proprietary Hycomp™ composite materials are sheet molding compounds (SMC) engineered as high-temperature, polyimide-based composites reinforced with one-inch chopped carbon (H310®) or glass (H320®) fibers. Designed as metal replacements to reduce weight and remove lubrication requirements in demanding mechanical and aerospace-critical systems, they provide high mechanical strength and continuous operating capability up to approximately 315°C (600°F).

Applications

• Engine components
• Flight control parts
• Landing gear
• Wheel and braking systems
• Bushings
• Guide rings
• Wear liners
• Seals
• Clamps
• Thermal isolators

H310® Composite (key points)

• Aerospace-grade polyimide thermoset resin reinforced with one-inch chopped carbon fiber.
• Optimized for lower to moderate speeds with high-load capability.
• High mechanical strength suitable for structural and wear-critical components.

H320® Composite (key points)

• Polyimide thermoset resin reinforced with one-inch chopped glass fiber.
• Best suited for high-temperature heat shield applications and high-temperature electrical insulation.

Advantages

• Continuous operating temperature capability up to approximately 315°C (600°F).
• Significant weight reduction versus metal in many applications (up to ~40% in some cases).
• Eliminates or reduces the need for lubrication in many mechanical assemblies.
• High mechanical strength and suitability for aviation-critical systems.

Standard Specifications (table)
Materials: Polyimide material with carbon fibers for H310® and glass fibers for H320®.
Service Conditions: Temperature: -140°C to +320°C; Mechanical Strength: 710 MPa.
Manufacturing Process: Sheet molding compound (SMC).
Features: Sheet molding compound process.
Dimension: Sheets of 20" x 30" maximum.

Technical characteristics

• Material base: High-temperature thermoset polyimide-based resin.
• Reinforcement: H310® — one-inch chopped carbon fiber; H320® — one-inch chopped glass fiber.
• Continuous operating temperature: up to approximately 315°C (600°F); service temperature range: -140°C to +320°C.
• Mechanical strength: 710 MPa.
• Manufacturing process: Sheet molding compound (SMC).
• Typical maximum sheet size: 20" x 30".
• Typical applications: bushings, guide rings, wear liners, seals, clamps, thermal isolators, engine and flight-critical components, landing gear, wheel and braking parts.
• Key benefits: weight savings versus metal, reduction or elimination of lubrication needs, high-temperature insulation and heat-shield capability (H320®), high-load wear resistance (H310®).
