Digital magnetometer PCE-MFM 2400+

scalarportablefor the aeronautical industry

Product name

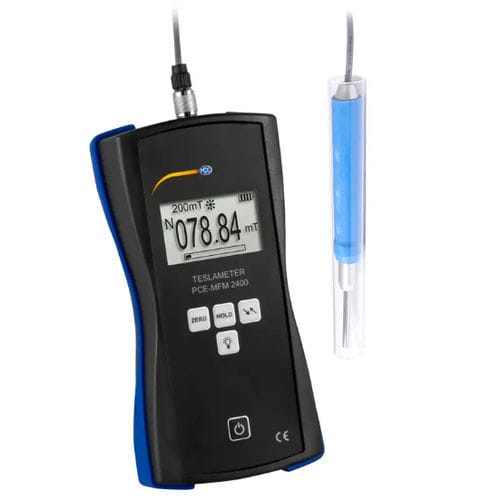

Magnetometer PCE-MFM 2400+ — magnetic field meter with axial Hall sensor, measuring range up to 2,400 mT (24,000 G), accuracy ±1%

Description
The PCE-MFM 2400+ measures static (DC) magnetic fields across a wide range. It is suitable for testing relays and permanent magnets and for use in production processes and quality control. Backlighting ensures readability in low light. An automatic shut-off function turns the instrument off after 5 minutes of inactivity to preserve battery life.

Highlights

• Measuring range up to 24,000 G / 2,400 mT
• Axial Hall sensor with approx. 2 m cable
• Accuracy: ±1% of reading
• Backlit 4-digit digital display
• Automatic shut-off and hold mode

Specification
Measuring range: 0…200 mT; 200…2,400 mT; 0…2,000 G; 2,000…24,000 G
Accuracy: ±1% of reading
Resolution: 0.01 mT; 0.1 G
Measuring direction: Axial
Magnetic field type: Static (DC)
Units: mT, G
Power supply: 1 x 9V block battery
Automatic shutdown: after 5 minutes idle
Modes: Hold mode, measurement mode
Display: Backlight digital 4-digit value display
Operating temperature: 0…50°C
Storage temperature: -20…50°C
Dimensions: 185 x 97 x 40 mm
Weight: 310 g
Sensor: Axial Hall sensor, cable length approx. 2 m

Delivery scope

• 1 x Magnetometer PCE-MFM 2400+
• 1 x Axial Hall sensor
• 1 x Service bag
• 1 x 9V block battery
• 1 x Instruction manual

Characteristics / technical specifications

• Measuring range: 0…200 mT; 200…2,400 mT; 0…2,000 G; 2,000…24,000 G
• Accuracy: ±1% of reading
• Resolution: 0.01 mT; 0.1 G
• Measuring direction: Axial (Hall sensor)
• Magnetic field type: Static (DC)
• Units: mT, G
• Power supply: 1 x 9V block battery
• Automatic shutdown: after 5 minutes idle
• Modes: Hold mode, measurement mode
• Display: Backlight digital 4-digit value display
• Operating temperature: 0…50°C
• Storage temperature: -20…50°C
• Dimensions: 185 x 97 x 40 mm
• Weight: 310 g
• Sensor: Axial Hall sensor, cable length approx. 2 m
