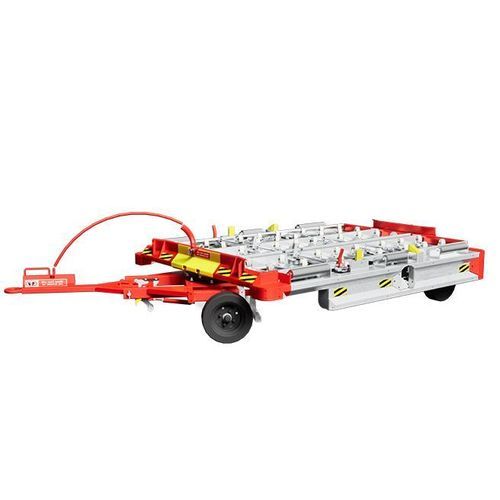

Container dolly CD-428

LD3for ULDwith safety lock

Overview
The Viking Container Dolly CD-428 is a one-piece welded chassis dolly engineered to meet current IATA, BS and European standards for ULD handling. Built from high-grade tensile steel with fabricated and folded outer walls, it is designed to resist typical collision impacts while enabling safe single-operator use and efficient ground operations.

Key features

• Single-person operation to reduce manpower and improve control.
• Auto-stop function that minimises the risk of dropped loads.
• Automatic wedge stops requiring no operator action during ULD onloads.
• Visual danger zone signage to improve situational awareness around the dolly.
• The 'Red Zone' concept: a visual and physical barrier preventing passage between trailers, including a raised safety plate with handle, an anti-step-through barrier and a perimeter blade stop for enhanced protection.
• Red ULD lock handles activating both ULD over-finger locks and secondary ULD stops (secondary stops marked in yellow).
• Pedal-operated lock-down and quick-release system for secure and fast ULD retention and release.
• Offloading from one side only, eliminating the need to step across or between trailers.

Benefits

• Improved operational safety for ground handling staff and equipment.
• Cost-effective design that reduces manpower and operating time.
• Enhanced throughput and reduced turnaround times for ULD handling.

Technical specifications

• Brand: Viking Airport Equipment
• Model: CD-428
• Load capacity: 2500 kg
• Maximum width: 1778 mm
• Maximum length: 2490 mm
• Torsion bar: 2 x 1500 kg
• Compatible container types: LD3, AKH
• Standards: IATA, BS, European
