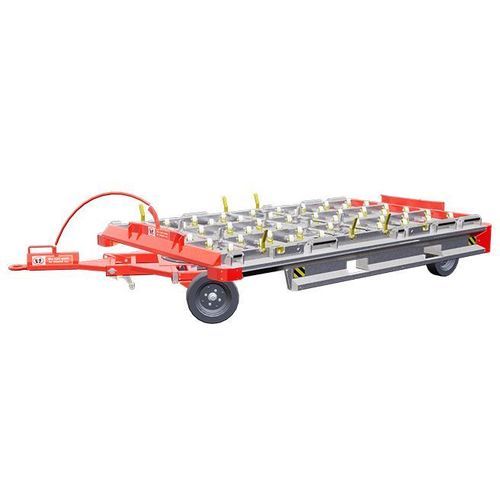

Container dolly CD-54

2-axlefor airport

The Viking CD-54 container dolly is a one-piece welded chassis dolly engineered for airport apron operations to transport standard LD containers. It features a high-grade tensile steel chassis with fabricated, folded outer walls to resist collision impacts and extend service life.

Key features

• Designed and manufactured in-house to meet current IATA, British Standards (BS) and European standards.
• One-piece welded chassis made from high grade tensile steel for strength with lightweight overall construction for easy manoeuvring by one person.
• Simple handle-operated lift-up stops on the sides to retain containers without levers, cables or foot pedals for minimal maintenance.
• Turn-table steer provided as standard for improved manoeuvrability on the apron.
• Chassis fully hot-dip galvanised for corrosion protection and finished with day‑glow paint on corners and hazard stripes to side and rear walls for high visibility.
• Optional anti step-over barrier available.

Technical specifications

• Load capacity: 2400 kg
• Maximum width: 3000 mm
• Maximum length: 1730 mm
• Top deck height: 508 mm (20")
• Inverted castors: 54
• Type of containers supported: LD1, LD3, LD4, LD8, or 2x LD2
• Parking brakes: fitted to wheel hubs and activated upon lifting the tow bar
• Chassis finish: hot-dip galvanised to BS EN ISO 1461
• Retention stops: lift-up stops (handle operated) located on the sides
• Construction material: high grade tensile steel with fabricated/folded outer walls to withstand reasonable collision impacts
• Steering: turn-table steer as standard
• Optional extras: anti step-over barrier
