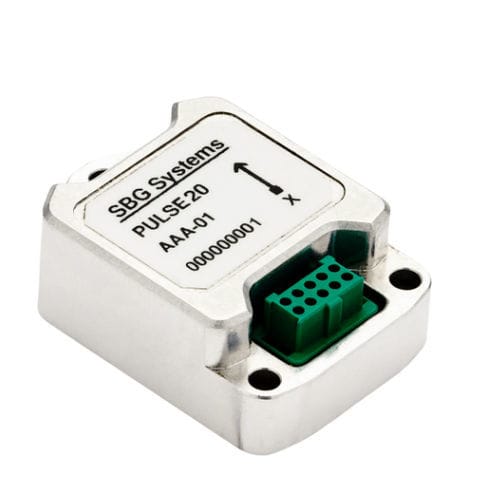

IMU inertial system Pulse-20

MEMS3-axisnavigation

Pulse-20 is the most compact fully calibrated industrial grade 9 DoF IMU. With its sub-miniature design, it can be integrated in multiple different types of vehicles, from civilian and subsea navigation to defense applications. It is also very robust to environmental constraints, with unmatched survivability in shocks, robustness in vibrations and maintains outstanding performance in all conditions. Pulse-20 is, therefore, the best motion sensor for space-constrained applications with tough environmental conditions.Discover all its features and applications.Features:Engineered to maximize the capabilities and performance of MEMS technology in a compact form factor.Integrates a 3-axis accelerometer and a 3-axis gyroscope, carefully calibrated, temperature-compensated, and filtered with a tailored FIR filter for outstanding performance in harsh conditions.Includes a 3-axis magnetometer for full nine-degree-of-freedom measurements.Supports both RS-422 serial and CAN communication for flexible integration.Small-size and highly robust: Ultra-small size, provides constant behavior in all environments thanks to extensive calibration from -40 ºC to +85 °C.Built-in Magnetometer: Factory calibrated, 3-axis magnetometer. Advanced calibration tool calibrates soft and hard iron and aligns the inertial and magnetic frames.Individual calibration process: Thorough calibration and testing process across its entire temperature range. Calibration report guarantees that the product meets specifications and is delivered with the product.Advanced connectivity: Serial RS422 and CAN, enabling integration in a large range of applications.Key Performance Numbers:Gyro bias instability: 7°/hrAccelerometer in-run bias instability: 14 µgPower Consumption: 400 mWVolume: 5 cm³Applications: The Pulse-20 provides precise attitude and heading data in a compact, high-performance package suited for a wide range of applications. For airborne navigation, it ensures stable flight control with lightweight precision, even in tough conditions. In land navigation, it enhances sensor fusion and orientation, enabling smooth vehicle movement. Adaptable and resilient, the IMU is the go-to solution for industries needing compact, powerful orientation sensors.AUV NavigationGimbal CameraPointing & StabilizationSATCOM OTMSelf-Driving CarsCompatibility: Compatible with SbgCenter (data logging and configuration), Robot Operating System (ROS), and Pixhawk (open-source autopilot hardware platform).Documentation: Comprehensive documentation is available, including hardware manual and configuration guides.Accelerometer Range±40 gGyroscope Range±1000 °/sAccelerometer Bias in-run instability14 μgGyroscope Bias in-run instability7 °/hVelocity Random Walk0.03 m/s/√hAngular Random Walk0.018 °/√hAccelerometer Bandwidth390 HzGyroscope Bandwidth133 HzOutput rateUp to 1kHzOperating voltage4 to 15 VDCPower consumption0.40 WWeight10 gDimensions (LxWxH)26.8 x 18.8 x 9.5 mmAccelerometer performance:Range: ±40 gLong term bias repeatability: 1500 μg (one year accelerated aging)Bias in-run instability: 14 μg (Allan Variance method, constant T °C)Scale factor: 100 ppmVelocity random walk: 0.03 m/s/√hVibration rectification error: 0.05 mg/g²Bandwidth: 390 HzGyroscope performance:Range: ±1000 °/sLong term bias repeatability: 750 °/h (one year accelerated aging)Bias in-run instability: 7 °/h (Allan Variance method, constant T °C)Scale factor: 500 ppmAngular random walk: 0.18 °/hVibration rectification error: <1 °/h/g² (10g RMS – random vibrations 20Hz to 2kHz)Bandwidth: 133 HzMagnetometer performance:Range: 50 GaussBias in-run instability: 1.5 mGaussRandom walk: 3 mGaussBandwidth: 22 HzInterfaces:Output protocols: Binary sbgEComOutput rate: Up to 2kHzSerial ports: 1x RS422, 1x RS232CAN: 1x CAN 2.0 A/B, up to 1 MbpsSync OUT: 1 x Synchronization outputSync IN: 1x Clock InputClock modes: Internal, External Direct (2kHz), External Scaled (1Hz to 1kHz)IMU configuration: sbgECom, sbgCenter (ODR, sync in/out, events)Mechanical & electrical specifications:Operating voltage: 4 to 15 VDCPower consumption: 400 mWWeight: 10 gDimensions (LxWxH): 26.8 mm x 18.8 mm x 9.5 mmEnvironmental specifications & operating range:Ingress protection (IP): IP-50Operating temperature: -40 °C to 85 °CVibrations: 10 g RMS | 20 Hz to 2 kHzShocks: < 2000 gMTBF (computed): 50,000 hoursCompliant with: MIL-STD-810
