IMU inertial system Pulse-40 OEM

for droneITAR-freeminiature

Overview

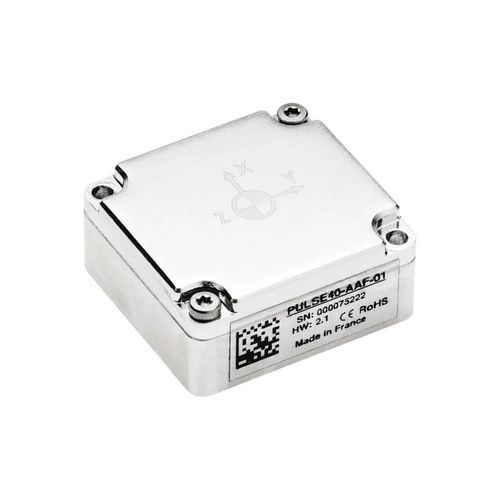

Pulse-40 OEM is an ultra-compact 9‑DoF inertial measurement unit (IMU) combining tactical-grade inertial performance, integrated vibration intelligence and a SWaP‑C optimized OEM form factor. The unit is ITAR FREE and not subject to export restrictions.

Key features

• Tactical-grade sensing: very low gyro and accelerometer bias in-run instability and low noise.
• High dynamics: gyro range ±4000 °/s and accelerometer range ±40 g for aggressive maneuvers.
• High output rate: up to 2000 Hz (2 kHz) ODR with low-latency streams.
• Integrated vibration intelligence: full-spectrum FFT up to 8 kHz, vibration monitoring and mitigation features.
• Complete 9‑DoF: built-in 3‑axis magnetometer.
• Optimized SWaP‑C: compact footprint 30 × 28 × 13.3 mm, weight 19 g, power ~0.30 W.
• Rugged environmentals: designed for high vibration and shock, compliant with MIL‑STD‑810 and multiple EMC standards.
• Easy integration: binary sbgECom protocol and sbgINSRestAPI for configuration.

Performance highlights
Output Data Rate (ODR): 2000 Hz
Gyro measurement range: ±4000 °/s
Accelerometer measurement range: ±40 g
Gyro latency (motion to output): 1.5 ms

Built-in tools and diagnostics
Onboard vibration monitoring provides full FFT up to 8 kHz and high-level alerts. Each unit undergoes individual multi‑axis thermal calibration. Continuous monitoring and advanced diagnostics safeguard data integrity and enable real-time fault detection.

Applications

• Navigation systems in GNSS‑challenged environments (attitude estimation, dead reckoning).
• Autonomous platforms (UAV, UGV) for localization, navigation and control.
• EO/IR stabilization and payload pointing requiring low noise and high update rates.
• Remote weapon stations and turrets for stabilization and tracking under vibration.
• Precision-guided munitions and seeker stabilization where high dynamics and controlled supply chain are required.

Documentation & integration
Comes with comprehensive online documentation and integration tools. Communication uses binary sbgECom and sbgINSRestAPI for configuration (clock mode, ODR, sync in/out, events) enabling high-bandwidth, low-latency data streams.

Technical specifications

• Model: Pulse-40 OEM
• Sensor type: 9‑DoF IMU (3‑axis gyro, 3‑axis accel, 3‑axis magnetometer)
• Output rate: up to 2000 Hz
• Gyroscope range: ±4000 °/s
• Gyroscope bias in‑run instability: 0.5 °/h
• Gyroscope long term bias repeatability: 150 °/h
• Gyroscope ARW: 0.18 °/√h
• Gyroscope bandwidth: 250 Hz
• Accelerometer range: ±40 g
• Accelerometer bias in‑run instability: 6 µg
• Accelerometer long term bias repeatability: 1250 µg
• Accelerometer VRW: 0.02 m/s/√h
• Accelerometer bandwidth: 250 Hz
• Vibration Rectification Error (accel): 0.03 mg/g²
• Vibration Rectification Error (gyro): 0.2 °/h/g²
• Measurement latency: 1.5 ms (motion to output)
• Output protocols: Binary sbgECom
• Interface: 1x UART (LvTTL) – up to 4 Mbps
• Sync: 1x Sync out / Clock in
• Clock modes: internal or external (direct at 2 kHz or scaled)
• Configuration API: sbgINSRestAPI
• Operating voltage: 3.3 to 5.5 VDC (nominal 3.3 V)
• Power consumption: 0.30 W
• Weight: 19 g
• Dimensions (L×W×H): 30 × 28 × 13.3 mm
• Ingress protection: IP50
• Operating temperature: -40 °C to 85 °C
• Vibration tolerance: 10 g RMS (20–2 kHz) & 6 g RMS (20 Hz–4.5 kHz)
• Shock tolerance: 2000 g for 0.3 ms
• MTBF (calculated): 4,000,000 hours
• Compliance: MIL‑STD‑810; EN 55032:2015; EN 61000 series
• Supply chain / export: ITAR FREE (no export restrictions)
