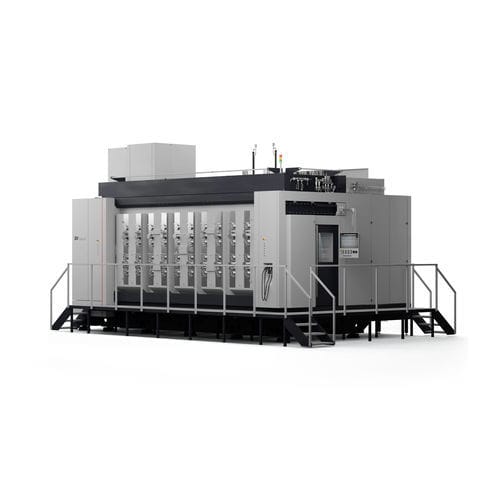

5-axis machining center BA space5

with swiveling spindlefor aeronauticsautomated loading/unloading

Product overview
The BA space5 is an above-ground 5-axis machining center engineered for machining large structural components. It combines main-time parallel loading/unloading, linear-drive dynamics and a patented monoblock construction to ensure stability during high-dynamic machining. Five-axis operations are executed via a swivel-head spindle, making the machine suitable for battery boxes, large structural parts and subframes.

Key features

• Main-time parallel loading/unloading
• Highest dynamics due to linear drive technology
• High machine rigidity thanks to patented monoblock construction
• 5-axis machining using a swivel-head spindle
• Multi-touch control panel
• Tool control system
• Flexible automation solutions and customized machine configuration
• Designed for accessibility to the workspace and clear view of the machining process
• Fully integrated data management (life data)

Applications / Workshops

• Battery box production
• Large structural components
• Subframes

Overview of the data
DESCRIPTION | BA space5-12H
Spindles | 1
Speed range | 1–30,000 min⁻¹
Power (S1) | 120 kW
Torque (S1) | 83 Nm
HSK Interface | HSK-A63 / 80
Work Area X | 4,800 mm
Working space Y | 1,800 mm
Working space Z | 875 mm

Technical specifications

• Model: BA space5-12H (example configuration shown)
• Spindles: 1
• Speed range: 1–30,000 min⁻¹
• Power (S1): 120 kW
• Torque (S1): 83 Nm
• HSK interface: HSK-A63 / 80
• Work area X: 4,800 mm
• Working space Y: 1,800 mm
• Working space Z: 875 mm
• 5-axis machining with swivel-head spindle
• Linear drive technology for high dynamics
• Monoblock construction for high rigidity
