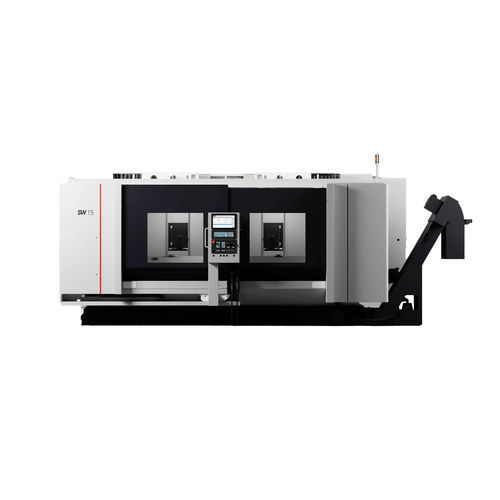

3-axis machining center BF 15-21D

horizontalfor aeronauticsCNC

Overview
Part of the BF series, the BF 15-21D is engineered for dynamic machining of die-cast and structural components. It uses a hybrid platform with linear drives on the X and Z axes and a ball screw on the Y axis. The machine integrates proven multi-spindle architecture with two independent three-axis units and one spindle per working area, enabling replacement of two single-spindle machines and higher throughput within a smaller footprint.

Key features

• PRODUCTIVITY
  • Hybrid drive concept
  • Combination of linear drives (X/Z) and ball screw (Y)
  • Multi-spindle operation: two independent 3-axis units, one spindle per working area; option to use two spindles per area during automated part change
• QUALITY
  • Designed for fast machining of aluminum die-cast and structural parts
• USER FRIENDLINESS
  • Movable multi-touch control panel
  • Tool monitoring system
• FLEXIBILITY
  • Flexible automation solutions and customizable machine configuration
• ERGONOMICS
  • Accessible workspace and clear view of machining process
• ENERGY EFFICIENCY
  • Significant energy reduction versus single-spindle configurations (manufacturer data)
  • Minimal footprint per part
• SERVICE
  • Integrated data management for lifecycle support

Overview of the data
DESCRIPTION | BF 15-21D
Spindles: 2
Spindle distance: 650 – 3750 mm
HSK interface: HSK-A63 / HSK-E50
Speed range: 1 - 17,500 min-1 / 1 - 40,000 min-1
Power (per spindle): 32 kW / 18 kW
Torque (per spindle): 72 Nm / 11.5 Nm
Workspace X: 2 x 1550 mm
Workspace Y: 750 mm
Workspace Z: 750 mm

Characteristics / technical specifications

• Model: BF 15-21D
• Series: BF series
• Spindles: 2
• Spindle distance: 650 – 3750 mm
• HSK options: HSK-A63, HSK-E50
• Speed range: up to 17,500 min-1 (variant) and up to 40,000 min-1 (variant)
• Power per spindle: 32 kW (variant) / 18 kW (variant)
• Torque per spindle: 72 Nm (variant) / 11.5 Nm (variant)
• Workspace X: 2 x 1550 mm
• Workspace Y: 750 mm
• Workspace Z: 750 mm
• Drive concept: linear drives on X and Z; ball screw on Y
• Automation: multi-spindle technology; automated part change; option for two spindles per working area
• Control: movable multi-touch panel; tool monitoring
• Applications: aluminum die-cast parts, frame and structural components, long profiles
