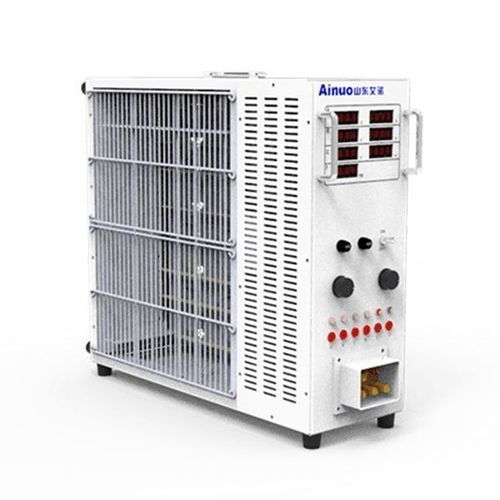

Motor load bank AN17LD(F) series

for ground power unitsaeronauticalfixed

Product overview
AN17LD(F) Series test load banks are designed for maintenance and inspection of aircraft ground power units (GPU). They reproduce aircraft electrical characteristics for functional testing of solid-state ground power systems used in civil and military aviation, flight test stations and production facilities. Their compact, lightweight and transportable design simplifies on-site testing and reduces logistics constraints.

Product features

• Compact dimensions and low weight for manual transport.
• Capable of simulating aircraft electrical loads across specified power ranges.
• Suitable for field maintenance, line maintenance and depot inspections.

Product application
Deployed in locations with concentrated aircraft activity such as gate areas, remote stands, maintenance hangars and aprons to support routine testing and troubleshooting of ground power units.

Technical Parameter

• Power: 0-45 kW / 0-90 kW
• Voltage accuracy: ±1 V
• Current accuracy: 3% of full scale
• Frequency accuracy: 1%
• Operating ambient temperature: -40 to 50°C

Characteristics / technical specifications

• Model: AN17LD(F) Series
• Power range: 0-45 kW or 0-90 kW (configuration dependent)
• Voltage accuracy: ±1 V
• Current accuracy: 3% of full scale
• Frequency accuracy: 1%
• Ambient temperature range: -40 to 50°C
• Designed for maintenance and inspection of aircraft ground power units; simulates aircraft electrical characteristics
• Portable design: compact size and low weight for easy transport
